AV Mixer With USB Port For Web Streaming & Recording
- HDMI & Composite Inputs
- Standard Definition 16:9 Mixing Engine
- Scaled Output up to 1080p
- Advanced 18 Channel Audio Mixer
- USB 2.0 for 480i Streaming
- 2.5” Multiview Touchscreen Monitor
- Picture-in-Picture, Keyer and Video Effects
Simplicity for all applications that need video and sound.

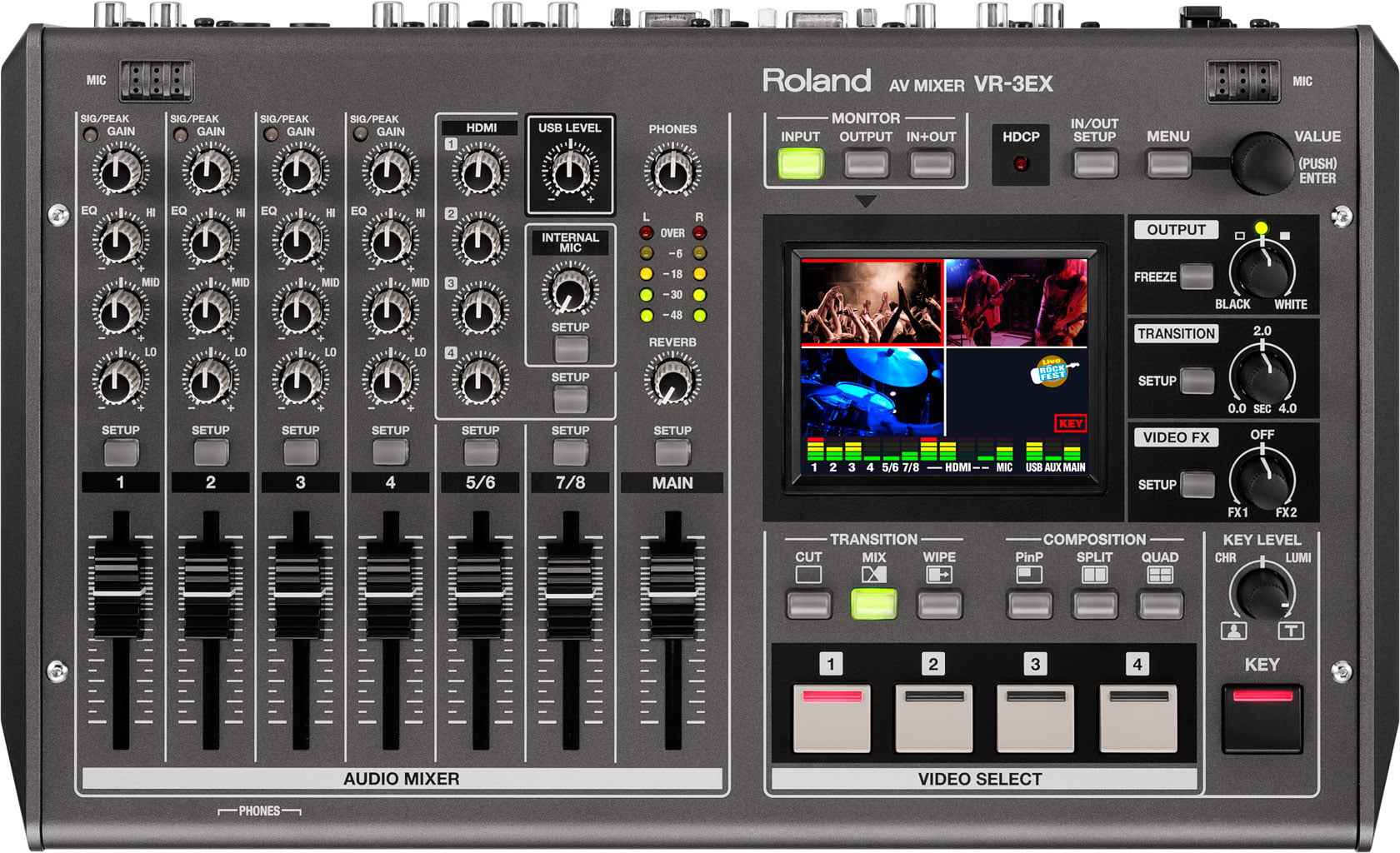

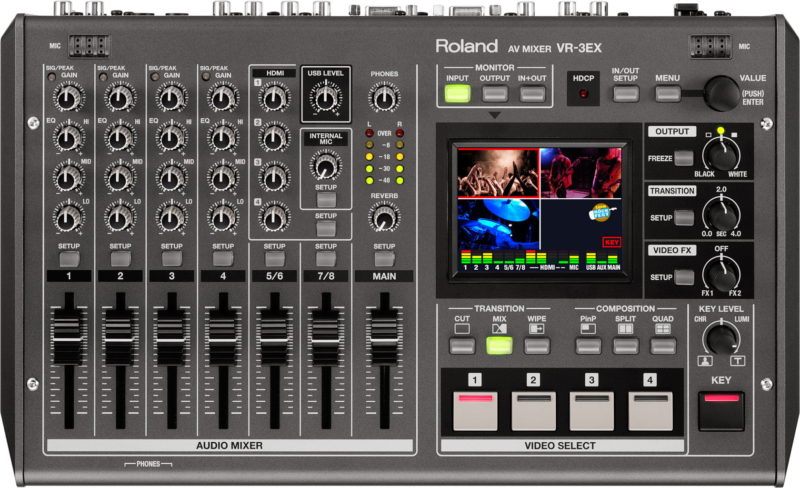

The VR-3EX features a simple interface that places the audio mixer on the left and the video mixer on the right for a design that helps ensure intuitive control of the audiovisual experience.
The buttons and knobs let the operator easily accomplish all the common tasks while the touch-screen monitor displays more-advanced settings and adjustments in a visual layout that’s clear and easy to understand.
The VR-3EX is expressly designed for real-time operations. It makes video switching and audio mixing accessible by users with no specialized knowledge.
An all-in-one design for live production
At event and studio venues, video equipment can include cameras, DVD players, computers, tablets, and more along with audio sources extending to microphones and audio players of every type.
The VR-3EX’s variety of connectors for HDMI, RGB, and audio sources enable connection of a wide range of video and audio devices. The design enables the user to concentrate on the event at hand without having to worry about controlling multiple devices at the same time.
Webstreaming or recording with a PC/Mac
Connecting the VR-3EX to a computer via USB enables it to record video and audio using the dedicated Video Capture for VR recording software or QuickTime. The recorded files can then be edited and/or uploaded to the net. Live streaming software examples include USTREAM, Livestream, Stickam, Justin.tv, worshipstream.com, websharelive.com, and other streaming services along with video conferencing type solutions such as Skype and gotomeeting. See the current VR-3EX Streaming Software Compatibility list for more information on streaming software compatibility.
Every function an event venue or live stream demands – all in one single unit.
From speeches, seminars, and symposiums to live events and performances, the VR-3EX simplifies setup and production for every application that requires video and sound.
An all-in-one solution for any application made possible by a wealth of features and a full range of practical digital-processing power.
Despite its compact size, the VR-3EX delivers full digital processing for video and audio, supporting on-site operations with clear picture and sound. It offers built-in digital effects for both video and audio, bringing new levels of audiovisual expression to any venue and streaming broadcast.
PROCESSING
Video Processing4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL)Audio ProcessingSampling Rate : 24 bits/48 kHz
INPUT FORMATS
HDMI Video (VIDEO IN 1–3)480/59.94p (when set to NTSC)
576/50p (when set to PAL)HDMI Video (VIDEO IN 4)480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC)
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)HDMI Audio (VIDEO IN 1–4)Linear PCM, 24 bits/48 kHz, 2 chRGB/Component (VIDEO IN 4)640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60Hz : Reduced blankingComposite Video NTSC, PAL (VIDEO IN 1–4)NTSC, PAL
OUTPUT FORMATS
HDMI and RGB/ Component Video (VIDEO OUT)480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
* The output format of HDMI and RGB/Component is always the same. When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector. When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.
* The refresh rates of RGB format is 60 Hz when set to NTSC, 75 Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.)
* RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60Hz : Reduced blankingHDMI Audio (VIDEO OUT)Linear PCM, 24 bits/48 kHz, 2 chComposite Video (VIDEO OUT)NTSC, PALPreview Video (PVW OUT)480/59.94p when set to NTSC, 576/50p when set to PALPreview Audio (PVW OUT)Linear PCM, 24 bits/48 kHz, 2 chUSB Video720 x 480 when set to NTSC, 720 x 576 when set to PAL, Motion JPEGUSB AudioLinear PCM, 16 bits/48 kHz, 2 ch

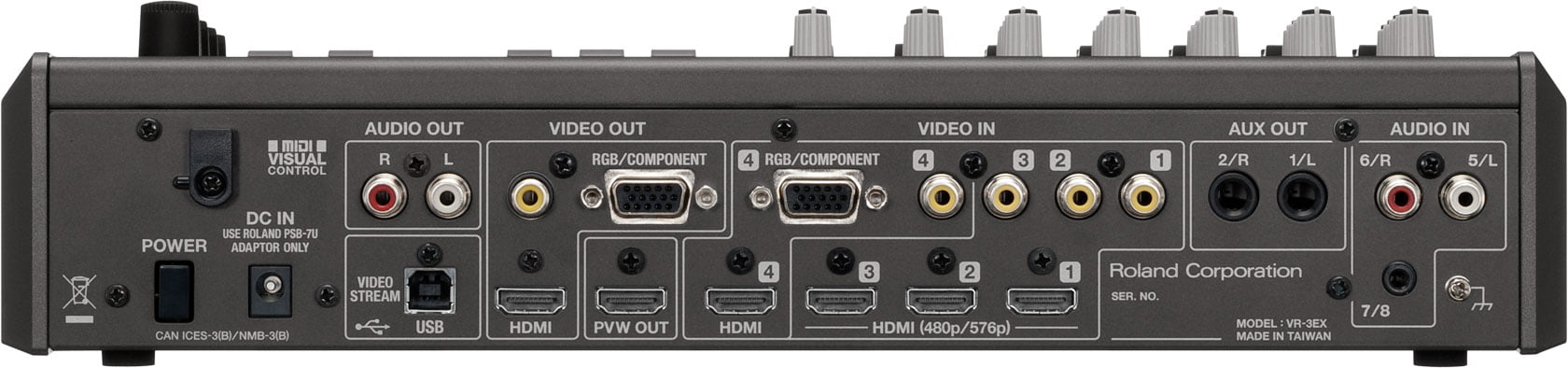

INPUT CONNECTORS
VideoVIDEO IN 1–4 (HDMI : Type A 19 pins)
VIDEO IN 4 (RGB/Component : HD DB-15 type)
VIDEO IN 1–4 (Composite : RCA phono Type)AudioAUDIO IN 1–4 (XLR/TRS combo type, phantom power)
AUDIO IN 5–6 (Stereo RCA phono type)
AUDIO IN 7/8 (Stereo miniature type)
MIC (Internal stereo microphones)Phantom PowerDC 48V (unloaded maximum), 10 mA (maximum load)
* Current value per channel
OUTPUT CONNECTORS
VideoVIDEO OUT (HDMI: Type A 19 pins)
VIDEO OUT (RGB/omponent : HD DB-15 type)
VIDEO OUT (Composite : RCA phono type)
PVW OUT (HDMI: Type A 19 pins)AudioAUDIO OUT L,R (Stereo RCA phono type)
AUX OUT L,R (Stereo 1/4-inch phone type)
PHONES (1/4-inch phone type) (headphones)
PHONES (Stereo miniature type) (headphones)
OTHER CONNECTORS

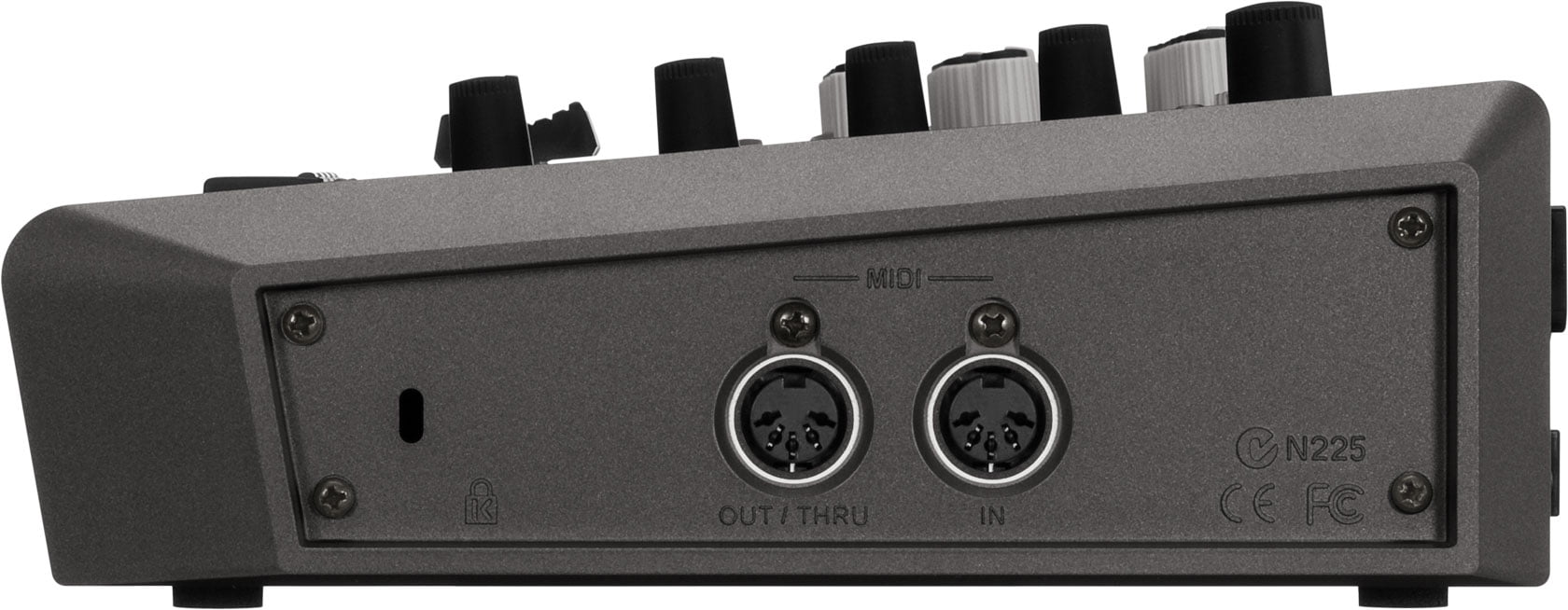

MIDI : 5 pins DIN type x 2 (IN, OUT/THRU)
USB : B type x 1 (for streaming and remote control)
SIGNAL LEVEL AND IMPEDANCE
RGB/ComponentInput/Output Signal Level : 1.0 Vp-p (luminance), 0.7 Vp-p (chroma)
Input/Output Impedance : 75 ohmsCompositeInput/Output Signal Level : 1.0 Vp-p
Input/Output Impedance : 75 ohmsXLR/TRS combo typeInput Signal Level : -60– 4 dBu (Maximum: 22 dBu)
Input Impedance : 10 k ohms (GAIN 0–23 dB), 5 k ohms (GAIN 24–64 dB)1/4-inch/RCA phono typeInput Signal Level : -10 dBu (Maximum: 8 dBu)
Input Impedance : 15 k ohms
Output Signal Level : -10 dBu (Maximum: 8 dBu)
Output Impedance : 1 k ohmsMiniature typeInput Signal Level : -15 dBu (Maximum: 3 dBu)
Input Impedance : 15 k ohmsHeadphonesOutput Signal Level: 25 mW 25 mW
Output Impedance : 10 ohmsDisplayGraphic Color LCD, 320 x 240 dots, touch panelVideo EffectsTransition : Cut, Mix (3 patterns), Wipe (250 patterns)
VIDEO FX : Strobe, Negative, Colorize, Findedge, Silhouette, Monochrome, Sepia, Emboss, Posterize, Color pass, Multi (11 types)
Composition : Picture in Picture, Split, Quad, Luminance Key, Chroma Key Others : Output Fade, Freeze
OTHERS
Power SupplyAC AdaptorCurrent Draw2.3 AAccessoriesAC Adaptor, Power Cord, Owner’s Manual
SIZE AND WEIGHT
Width345 mm13-10/16 inchesDepth203 mm8 inchesHeight80 mm3-3/16 inches
Weight2.3 kg5 lbs. 2 oz.
Brand
Roland
