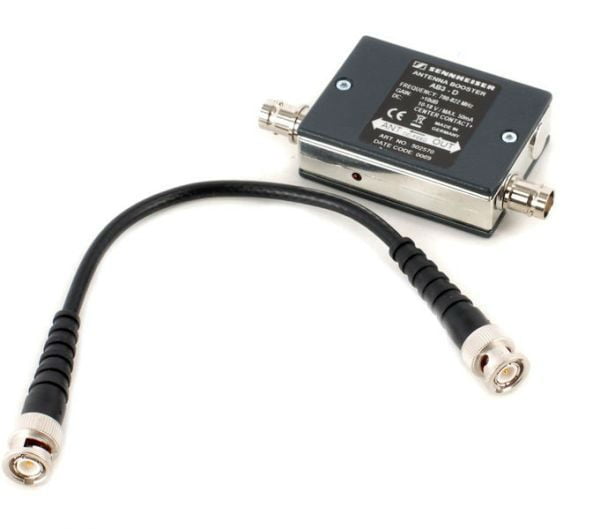

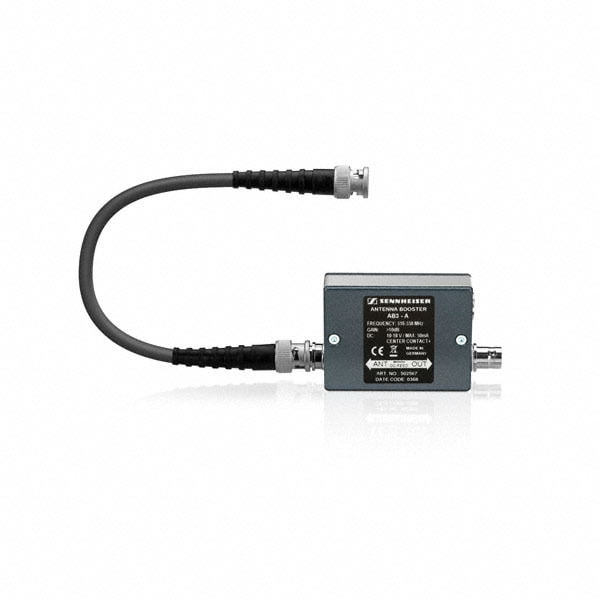

Antenna signal booster for ew G3 receivers
Compensates for RF losses through remote antenna cables
Power pick-up over the ASA 1/NT 1-1 through the BNC cable
Designed for the upgraded performance characteristics of ew G3 receivers
Compensates for RF losses through remote antenna cables
Power pick-up over the ASA 1/NT 1-1 through the BNC cable
With a 42 MHz switching bandwidth and 10 dB amplification, this antenna booster is designed for
the upgraded performance characteristics of ew G3 receivers. Up to two AB 3 boosters for each
antenna feed can compensate for RF losses through remote antenna cables. Power is supplied to the
boosters over the ASA 1/NT 1-1 through the BNC cable.
Switching bandwidth : 42 MHz
RF frequency range : 516 ….. 865 MHz (select required variant for frequency range)
Gain : > 10 dB
Antenna connector : BNC
Impedance : 50 Ohm
Dimensions : 95 x 47 x 21 mm
Weight : 60 g
Variants
502567 AB 3-A (516-558MHz)
502572 AB 3-G (566-608 MHz)
502568 AB 3-B (626-668 MHz)
502569 AB 3-C (734-776MHz)
502570 AB 3-D (780-822 MHz)
502571 AB 3-E (823-865 MHz) – channel 70
504680 AB 3-GB (606-648 MHz) – channel 38
