The best choice if you need a bodypack transmitter and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack transmitter. Just add your favorite clip-on or headset microphone.
- Easy to use, fast setup time
- Up to 88 MHz bandwidth, up to 32 channels
- Transmission Range: up to 100 meters / 330 feet
- Rack Mountable (rack kit included)
Best choice for your business, top of the class in education, ideal in houses of worship. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation – despite digital dividend.
The best choice if you need a bodypack transmitter and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack transmitter. Just add your favorite clip-on or headset microphone.
FEATURES
- Easy to use, fast setup time
- Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 88 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 PRO
- RC (remote control) switch available for the bodypack transmitter
DELIVERY INCLUDES

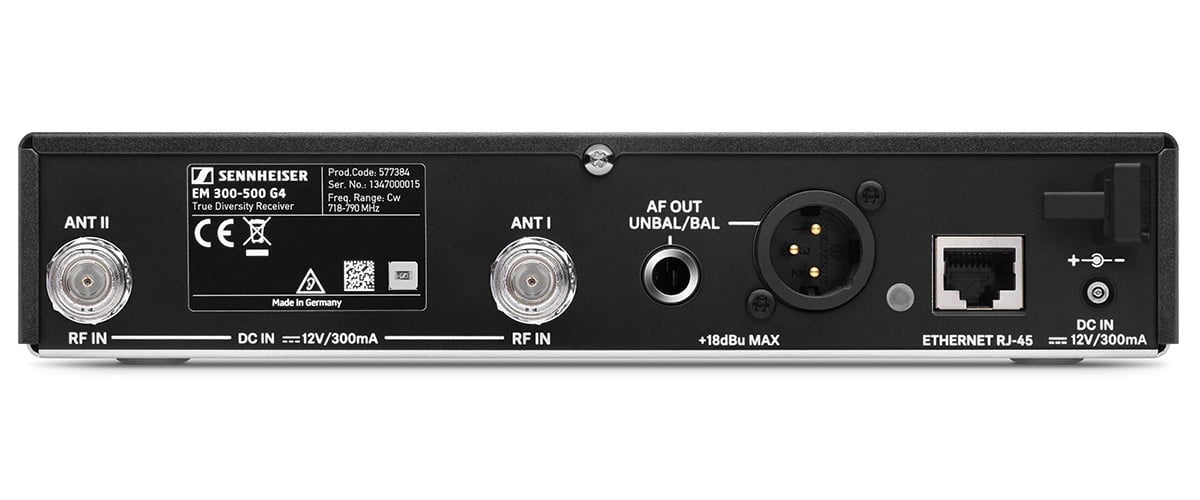

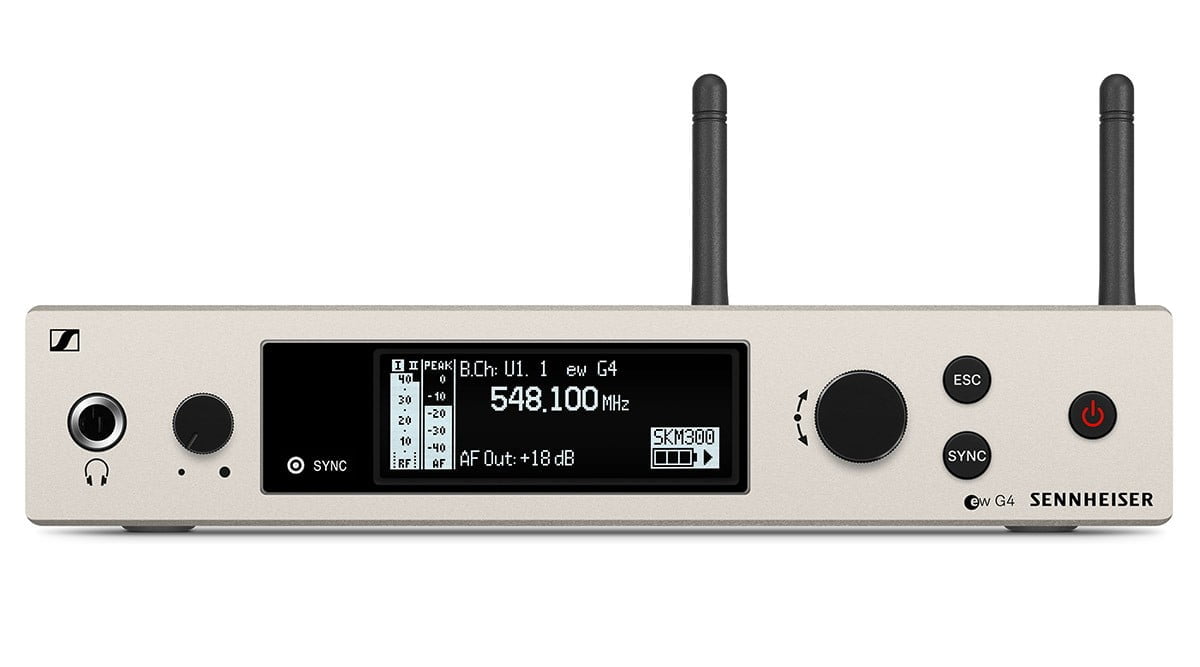

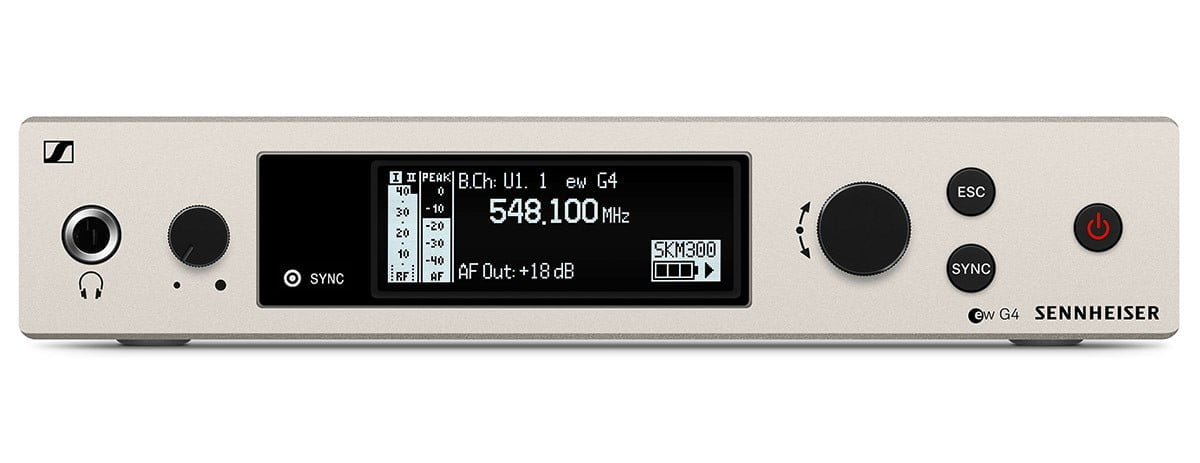

- EM 300-500 G4 true diversity receiver

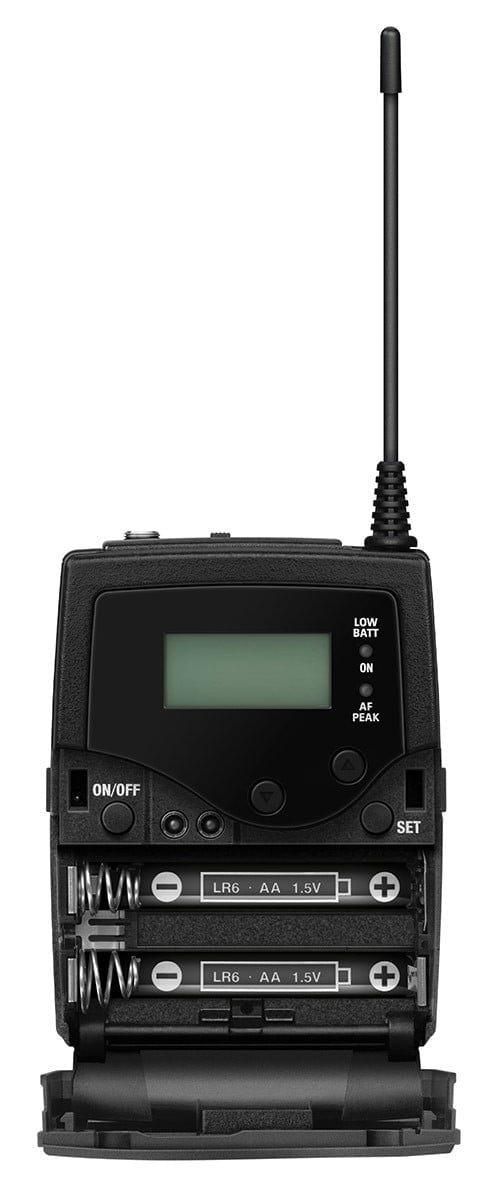

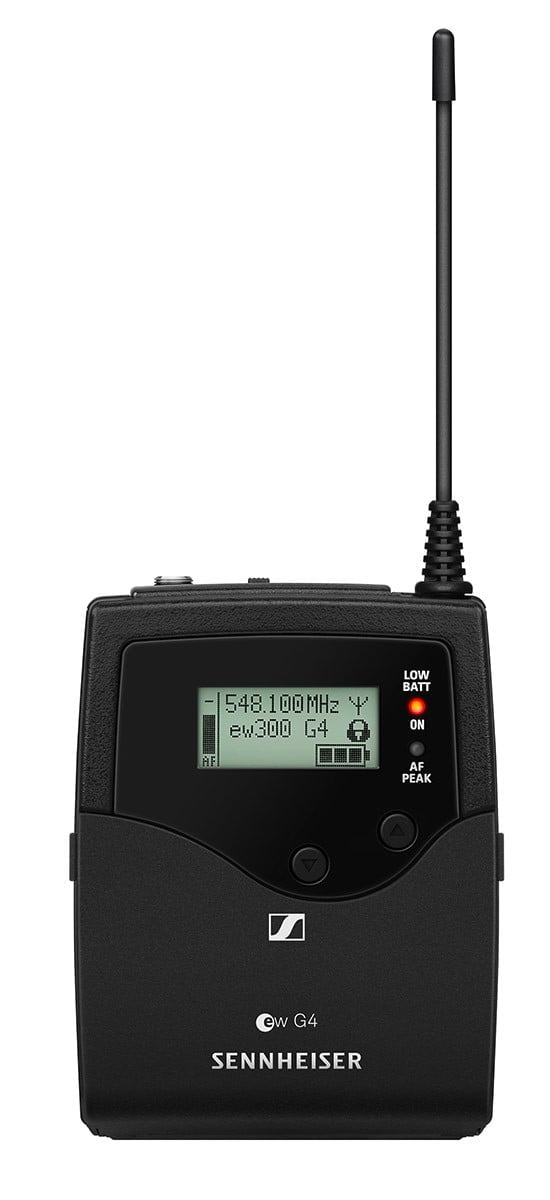

- SK 300 G4
- GA 3 rackmount set
- power supply
- AA batteries
- 2 rod antennas
- quick guide
- Safety guide
- manufacturer declaration sheet
EM300 G4
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 – 558 MHz
AS: 520 – 558 MHz
Gw1: 558 – 608 MHz
Gw: 558 – 626 MHz
GBw: 606 – 678 MHz
Bw: 526 – 698 MHz
Cw: 718 – 790 MHz
Dw: 790 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
Receiving frequencies Max. 2880 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-pre-set channels, no intermodulation
6 frequency banks with up to 32 programmable channels
Switching bandwidth up to 72 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Receiver principle True diversity
Sensitivity (with HDX, peak deviation) < 2.5 μV for 52 dBA eff S/N
Adjacent channel selection Typically ≥ 75 dB
Intermodulation attenuation Typically ≥ 70 dB
Blocking ≥ 75 dB
Squelch 5 to 25 dBμV in steps of 2 dB
Pilot tone squelch Can be switched off
Antenna inputs 2 BNC sockets
AF characteristics
Compander system Sennheiser HDX
EQ presets (switchable, act on line and monitor outputs)
Preset 1: Flat
Preset 2:
Low Cut (-3 dB at 180 Hz)
Preset 3:
Low Cut/High Boost
(-3 dB at 180 Hz,
+6 dB at 10 kHz)
Preset 4:
High Boost
(+6 dB at 10 kHz)
Signal-to-noise ratio (1 mV, peak deviation) ≥ 115 dBA
Total harmonic distortion (THD) ≤ 0.9 %
AF output voltage (at peak deviation, 1 kHz AF)
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Setting range “AF Out” 48 dB (3 dB steps)
Overall device
Temperature range -10 °C to +55 °C
Power supply 12 V DC
Current consumption 350 mA
Dimensions Approx. 202 x 212 x 43 mm
Weight Approx. 980 g
EM300 G4
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 – 558 MHz
AS: 520 – 558 MHz
Gw1: 558 – 608 MHz
Gw: 558 – 626 MHz
GBw: 606 – 678 MHz
Bw: 526 – 698 MHz
Cw: 718 – 790 MHz
Dw: 790 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
Receiving frequencies Max. 2880 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-pre-set channels, no intermodulation
6 frequency banks with up to 32 programmable channels
Switching bandwidth up to 72 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Receiver principle True diversity
Sensitivity (with HDX, peak deviation) < 2.5 μV for 52 dBA eff S/N
Adjacent channel selection Typically ≥ 75 dB
Intermodulation attenuation Typically ≥ 70 dB
Blocking ≥ 75 dB
Squelch 5 to 25 dBμV in steps of 2 dB
Pilot tone squelch Can be switched off
Antenna inputs 2 BNC sockets
AF characteristics
Compander system Sennheiser HDX
EQ presets (switchable, act on line and monitor outputs)
Preset 1: Flat
Preset 2:
Low Cut (-3 dB at 180 Hz)
Preset 3:
Low Cut/High Boost
(-3 dB at 180 Hz,
+6 dB at 10 kHz)
Preset 4:
High Boost
(+6 dB at 10 kHz)
Signal-to-noise ratio (1 mV, peak deviation) ≥ 115 dBA
Total harmonic distortion (THD) ≤ 0.9 %
AF output voltage (at peak deviation, 1 kHz AF)
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Setting range “AF Out” 48 dB (3 dB steps)
Overall device
Temperature range -10 °C to +55 °C
Power supply 12 V DC
Current consumption 350 mA
Dimensions Approx. 202 x 212 x 43 mm
Weight Approx. 980 g
Brand
Sennheiser
Sennheiser
DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
