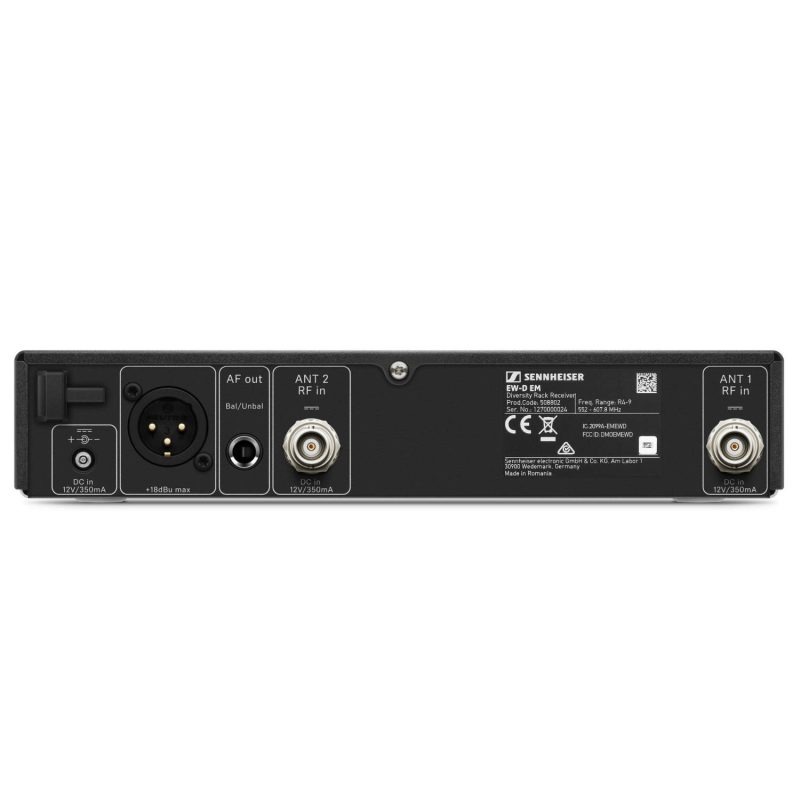

1/2 19″ rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.
1/2 19″ rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.
Features
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Product Specifications
- Frequency ranges
- S1-7: 606.2 – 662 MHz
- U1/5: 823.2 – 831.8 MHz & 863.2 – 864.8 MHz
- Input voltage: 11 – 13 V ⎓
- Input current: ≤ 300 mA
- Transmit power (radiated): BLE: max. 10 mW EIRP
- Audio output power: 18 dBu max.
- HD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Operating relative humidity: 5 – 95 % (non-condensing)
- Audio frequency response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs
- Dimensions: 212 x 44 x 189 mm
- Weight approx.: 1000 g (without antennas and power supply)
What’s in the Box?
- EW-D EM rack receiver
- 2 rod antennas
- Power supply with country adapters
- Rackmount set
- 4 rubber feet
- Quick guide
- Safety guide
- Manufacturer declaration sheet
