£2,025.00 Inc VAT
This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.
- 2 channel half rack (9.5’)
- Up to 88 MHz switching bandwidth
- PoE IEEE 802.3af Class 3
- Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
- Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Secure AES 256 encryption
This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.
EW-DX EM 2
- 2 channel half rack (9.5’)
- Up to 88 MHz switching bandwidth
- PoE IEEE 802.3af Class 3
- Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
- Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Secure AES 256 encryption
- External PSU 12V/1A
- All-metal housing

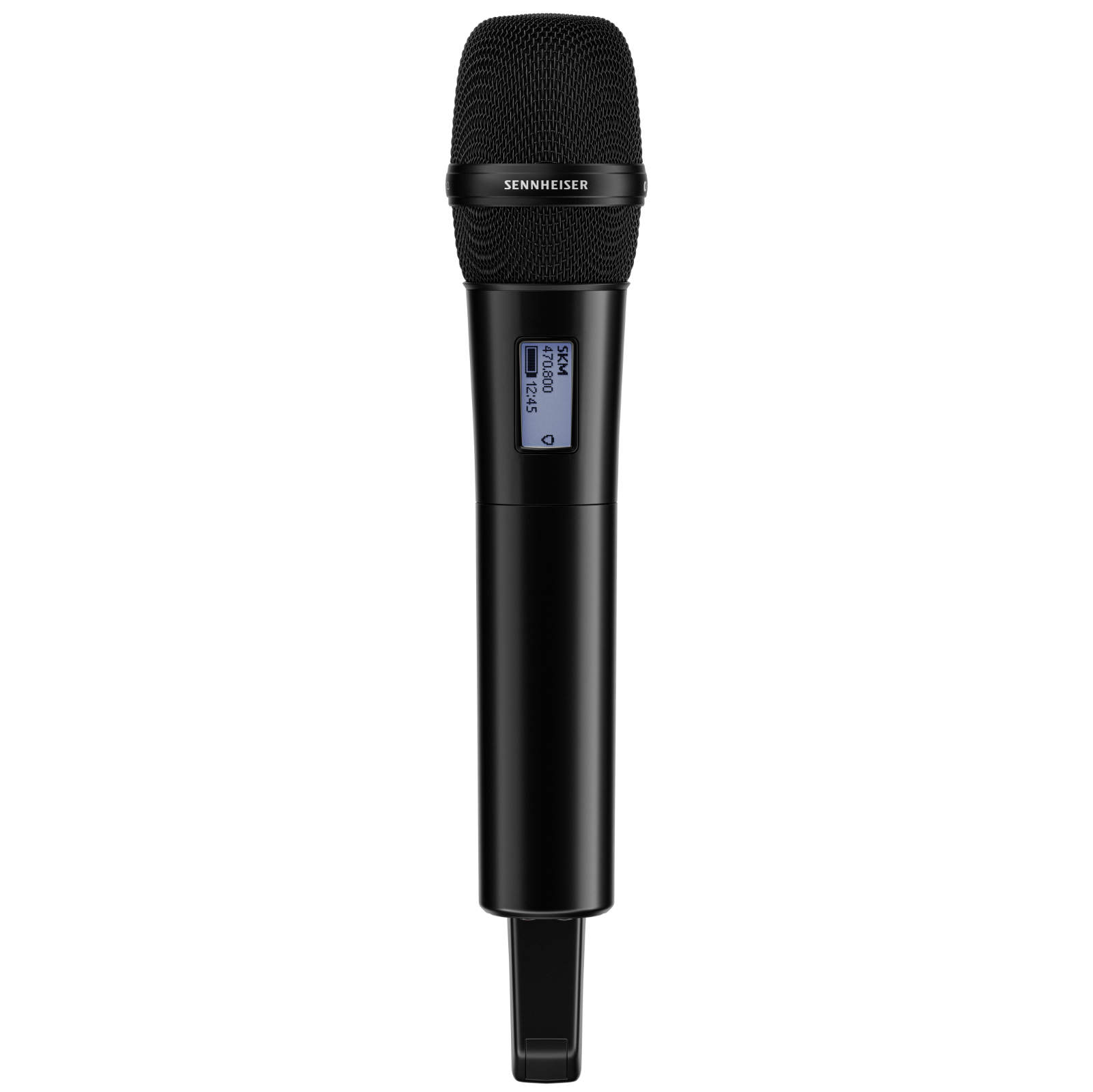

EW-DX SKM-S
- 10mW RF power with up to 100m/328ft working range
- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display – parameters visible on screen even when device is not powered on
- Programmable mute switch on EW-DX SKM-S – customize the device depending on your professional needs
- Function buttons – control all the transmitter settings directly from handheld microphone
- Extended runtime with lithium-ion batteries – up to 12 hours operation time
- Standard capsule interface – compatible with a wide range of Sennheiser and Neumann capsules
- Mic input trim control
- Metal housing
What’s in the box?
- EW-DX EM 2 rack receiver
- 2 EW-DX SKM-S handheld transmitters
- 2 MMD 835 microphone modules
- 2 MZQ 1 microphone clamps
- 2 rod antennas
- Power supply with country adapters
- GA 3 rackmount set
- 4 rubber feet
- 2 BA 70 rechargeable battery packs
- Quick guide
- Safety guide
- Manufacturer declaration sheet
System
- Audio link frequency ranges:
- Q1-6: 470.2 – 526 MHz
- R1-6: 520 – 576 MHz
- R4-9: 552 – 607.8 MHz
- S1-7: 606.2 – 662 MHz
- S4-7: 630 – 662 MHz
- S7-10: 662 – 693.8 MHz
- U1/5: 823.2 – 831.8 MHz & 863.2 – 864.8 MHz
- V3-4: 925.2 – 937.3 MHz
- Y1-3: 1785.2 – 1799.8 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2402 – 2480 MHz
- Audio frequency response:
- 20 Hz – 20 kHz (-3 dB)
- @ 3 dBfs
- Audio THD:
- ≤ -60 dB for 1 kHz
- @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Operating temperature: -10 °C – +55 °C (14 °F – 131 °F)
- Relative humidity: 5 – 95 % (non-condensing)

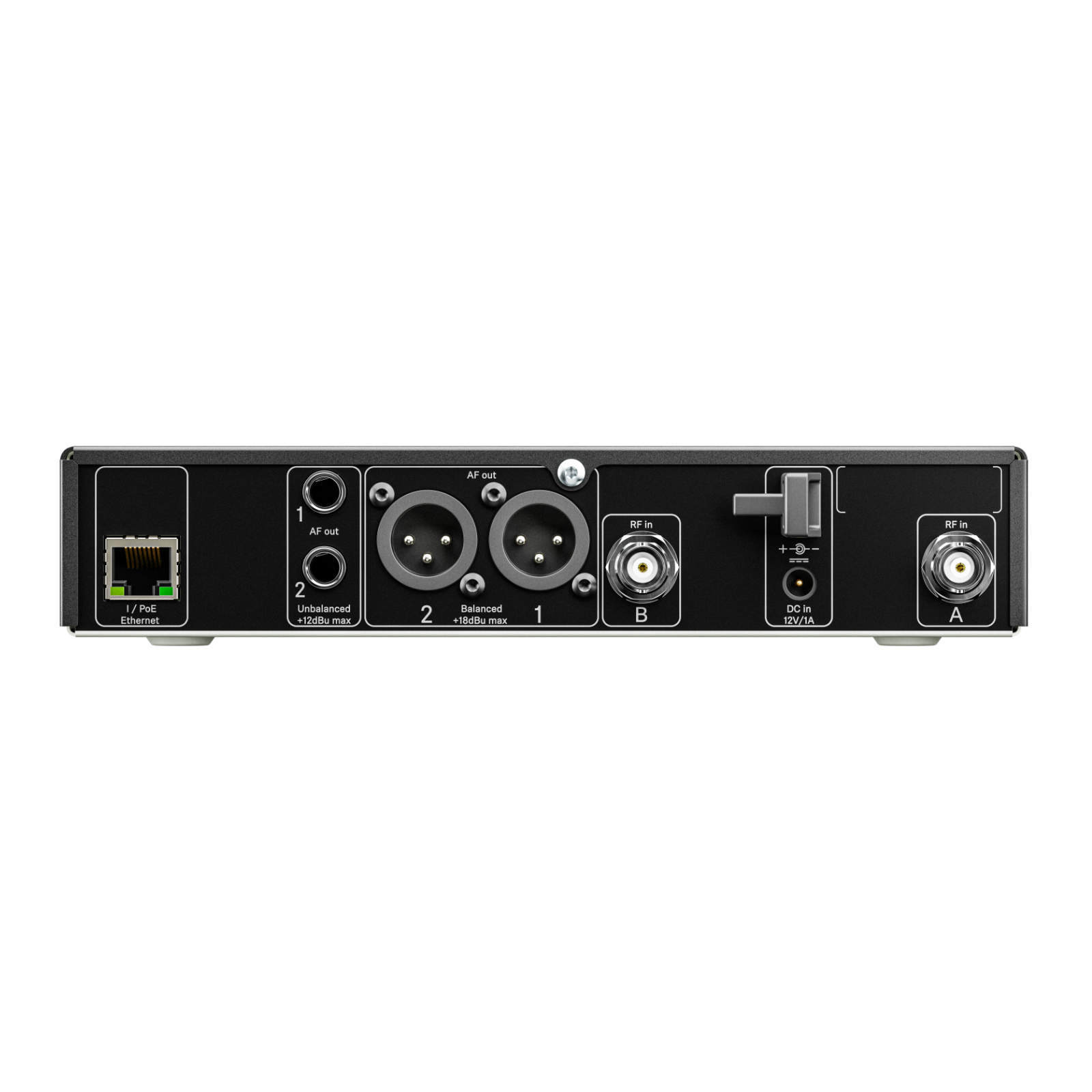

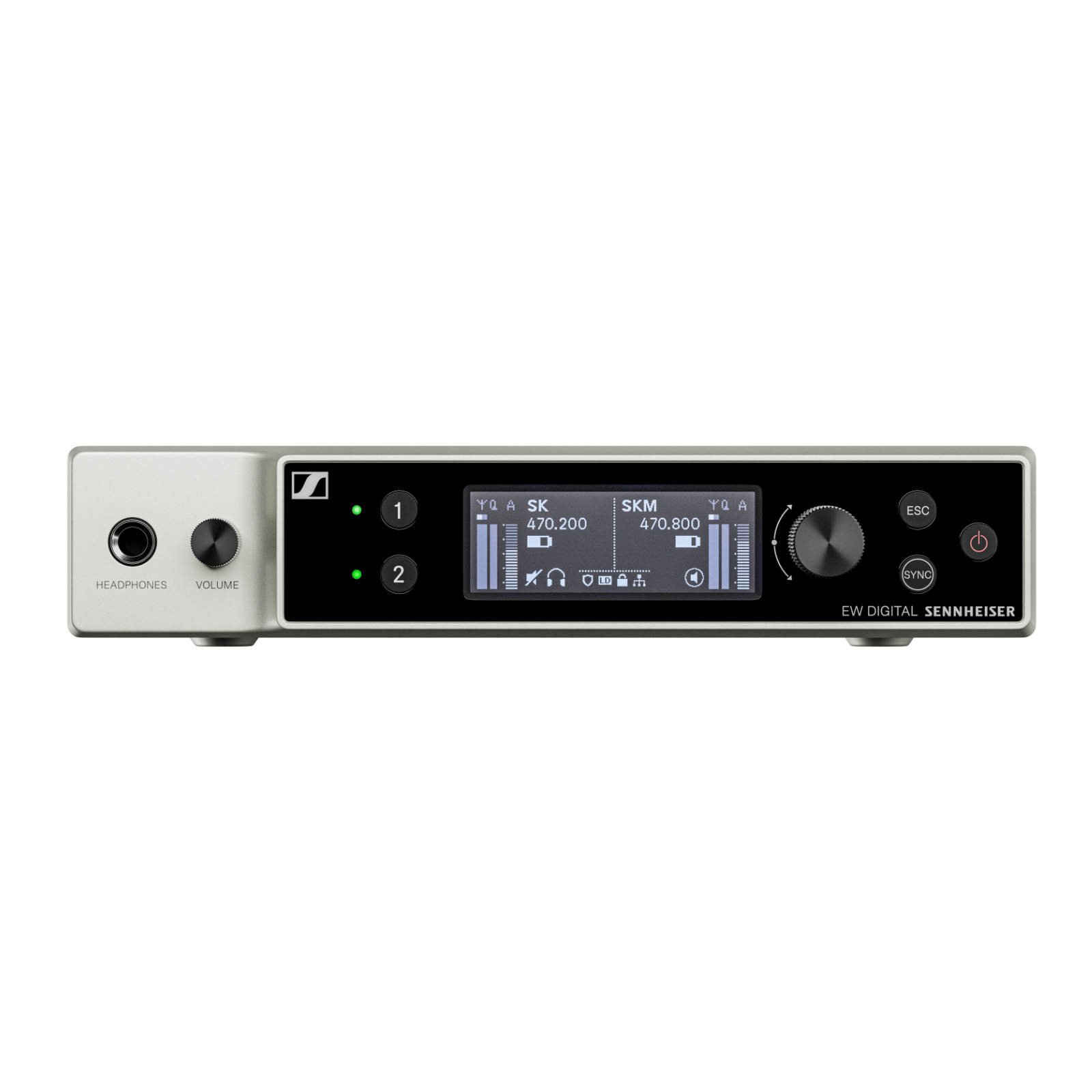

EW-DX EM 2 (Rack Receiver)
- Input voltage: 11 – 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
- Input current: ≤ 1 A
- Transmit power (radiated): BLE: max. 10 mW EIRP
- Audio output power: 18 dBu max.
- Headphone output: 2x 70 mW @ 32 Ω
- Ethernet:
- RJ-45 socket, IEEE802.3
- 100Base-TX (half+full duplex)
- 10Base-T (half+full duplex)
- (CAT5e or higher)
- Dimensions: 212 x 44 x 189 mm (8.35″ x 1.73″ x 7.44″)
- Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)

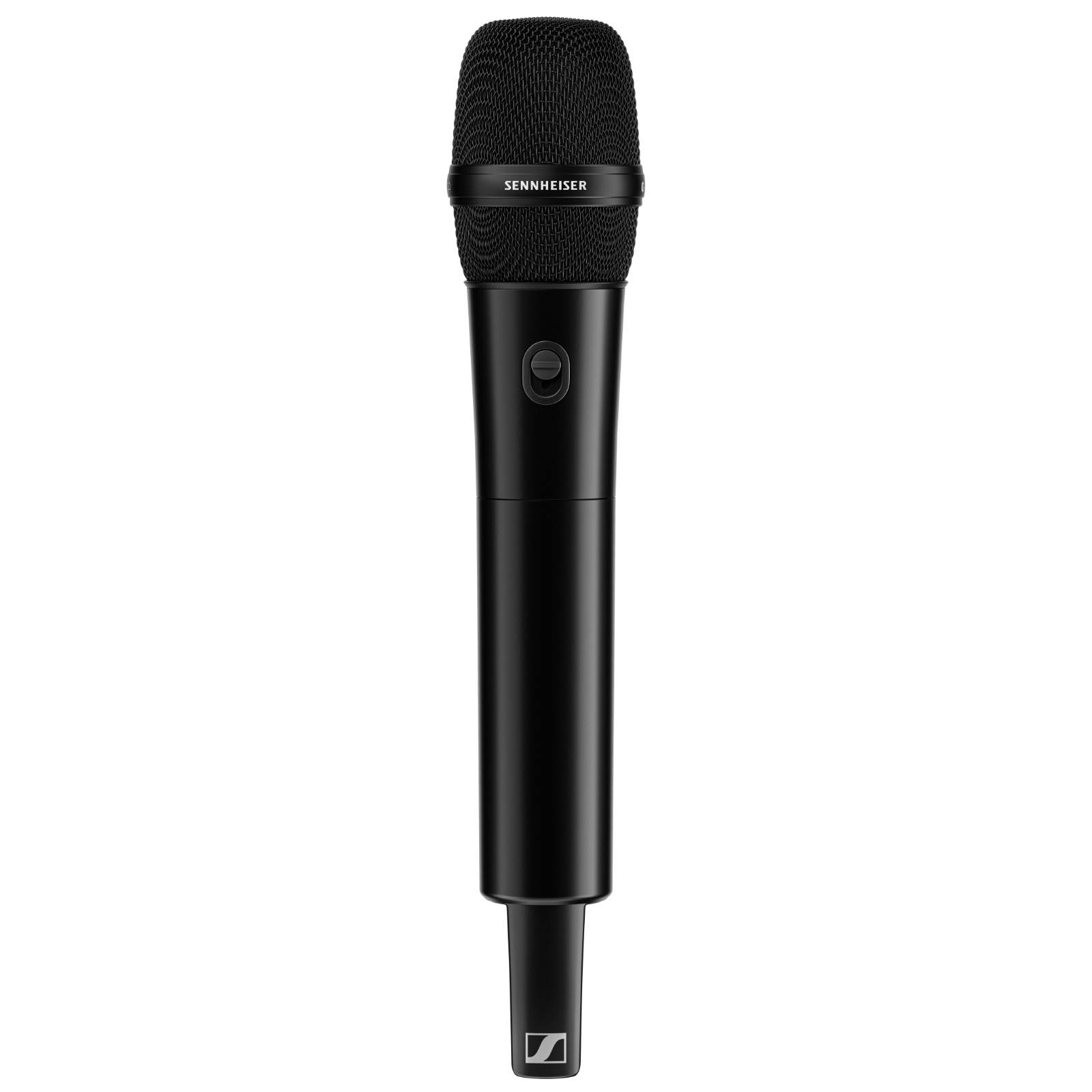

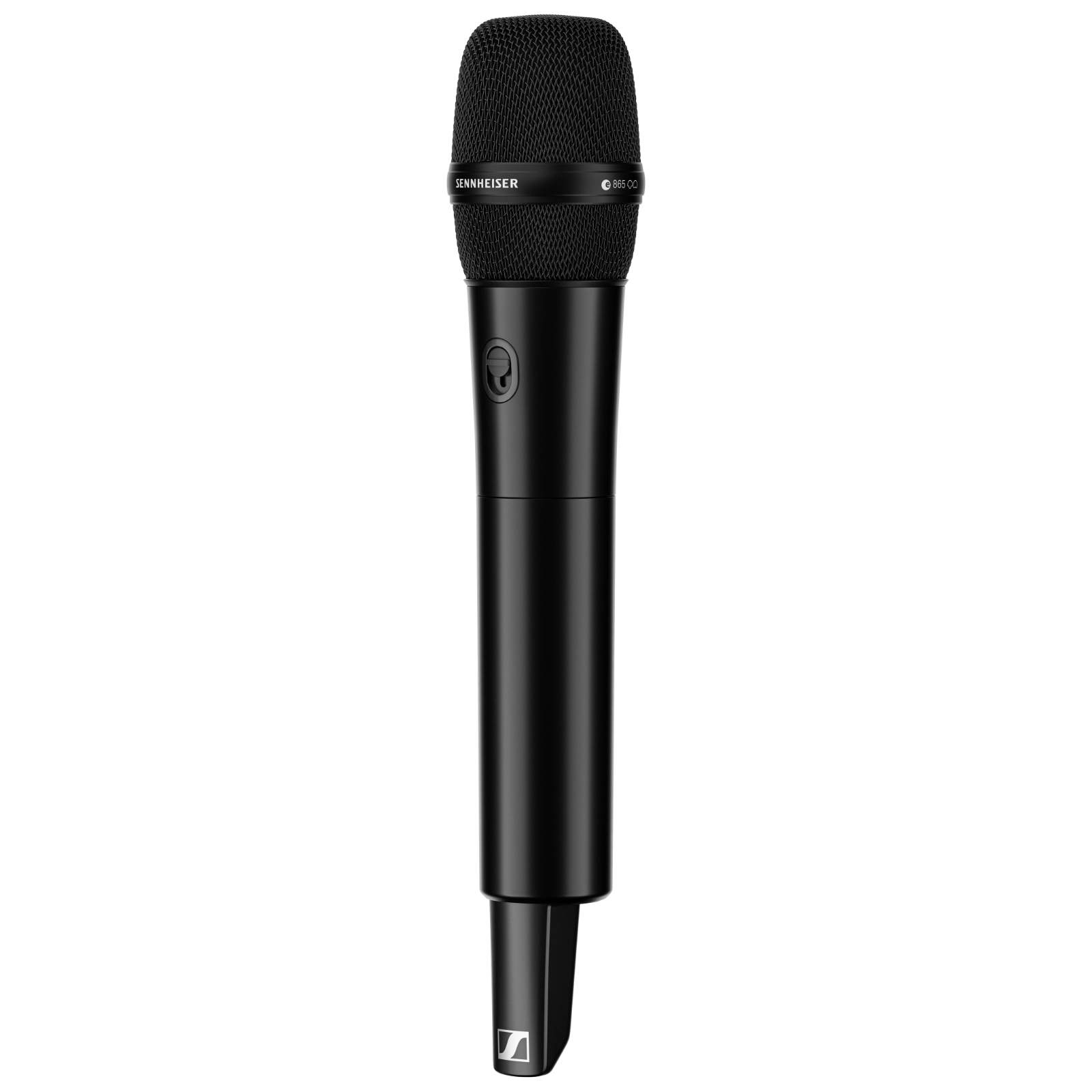

EW-DX SKM-S (Handheld Transmitter)
- Input voltage: 2.0 – 4.35 V
- Input current: < 300 mA
- Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied bandwidth: 200 kHz
- Transmit power (radiated):
- Audio link: 10 mW ERP
- (Range Y1-3: 12 mW ERP)
- BLE: max. 10 mW EIRP
- Dimensions (ø x l)
- (incl. MMD 835 microphone module): 50 x 268 mm (1.97″ x 10.55″)
- (without microphone module): 40 x 200 mm (1.57″ x 7.87″)
- Weight (without batteries)
- (incl. MMD 835 microphone module): approx. 304 g (0.67 lbs)
- (without microphone module): approx. 195 g (7.14 lbs)
MMD 835 (Microphone Module)
- Transducer principle: dynamic
- Sensitivity: 2.1 mV/Pa
- Sound pressure level: 154 dB SPL
- Pick-up pattern: cardioid
