Sennheiser EW-DX MKE 2 Set – Wireless Lapel Mic System

Sennheiser EW-DX MKE2 Lavalier Set
£2,475.00 Inc VAT

This wireless lavalier microphone set consists of 2 x EW-DX SK (wireless bodypack transmitter), 2 x MKE 2 (omni-directional clip-on lavalier microphone), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
Sennheiser

Categories: , , , SKU: RM/LAP/SEN-EW-DX-MKE2

This wireless lavalier microphone set consists of 2 x EW-DX SK (wireless bodypack transmitter), 2 x MKE 2 (omni-directi- onal clip-on lavalier microphone), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

EW-DX EM 2 FEATURES

  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing

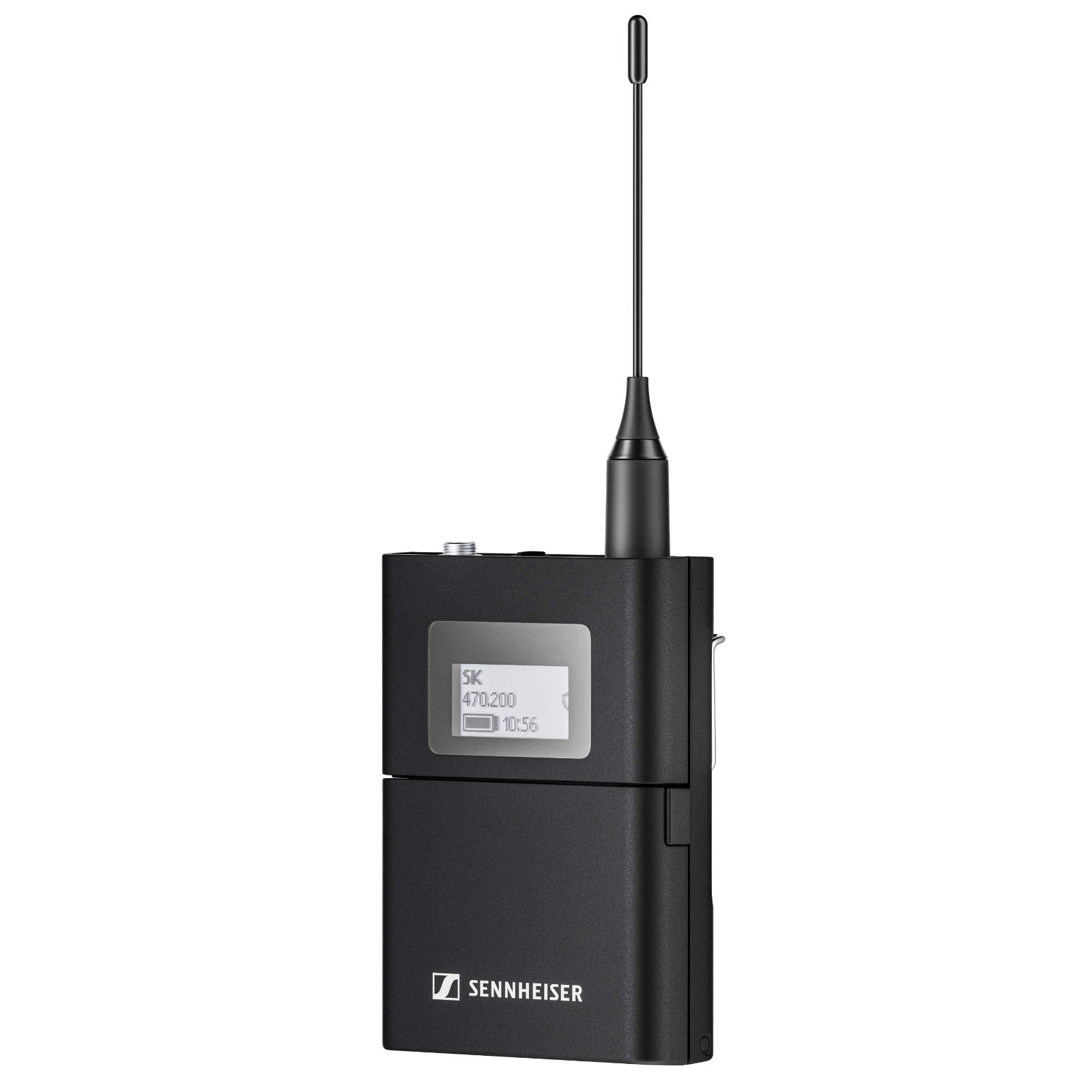

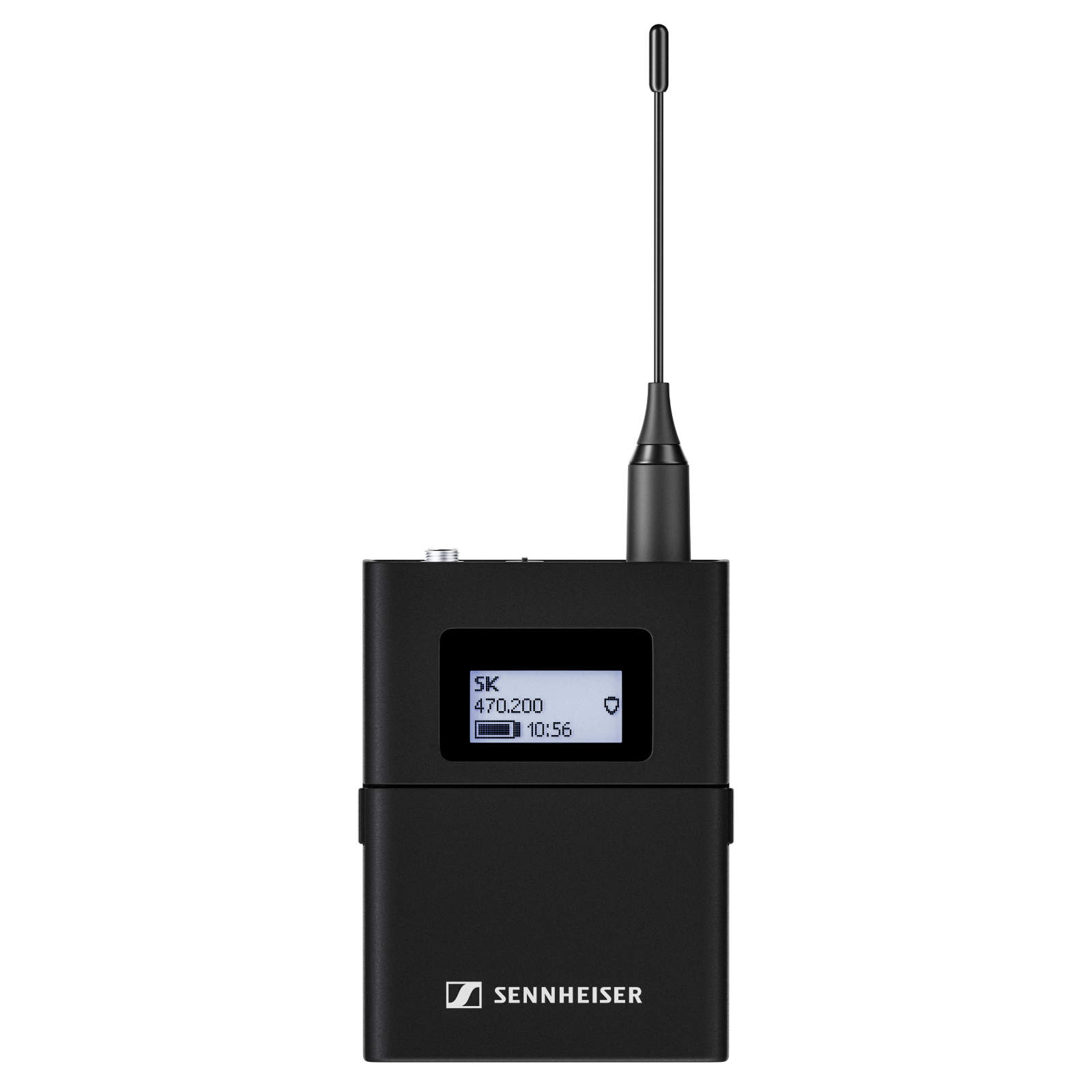

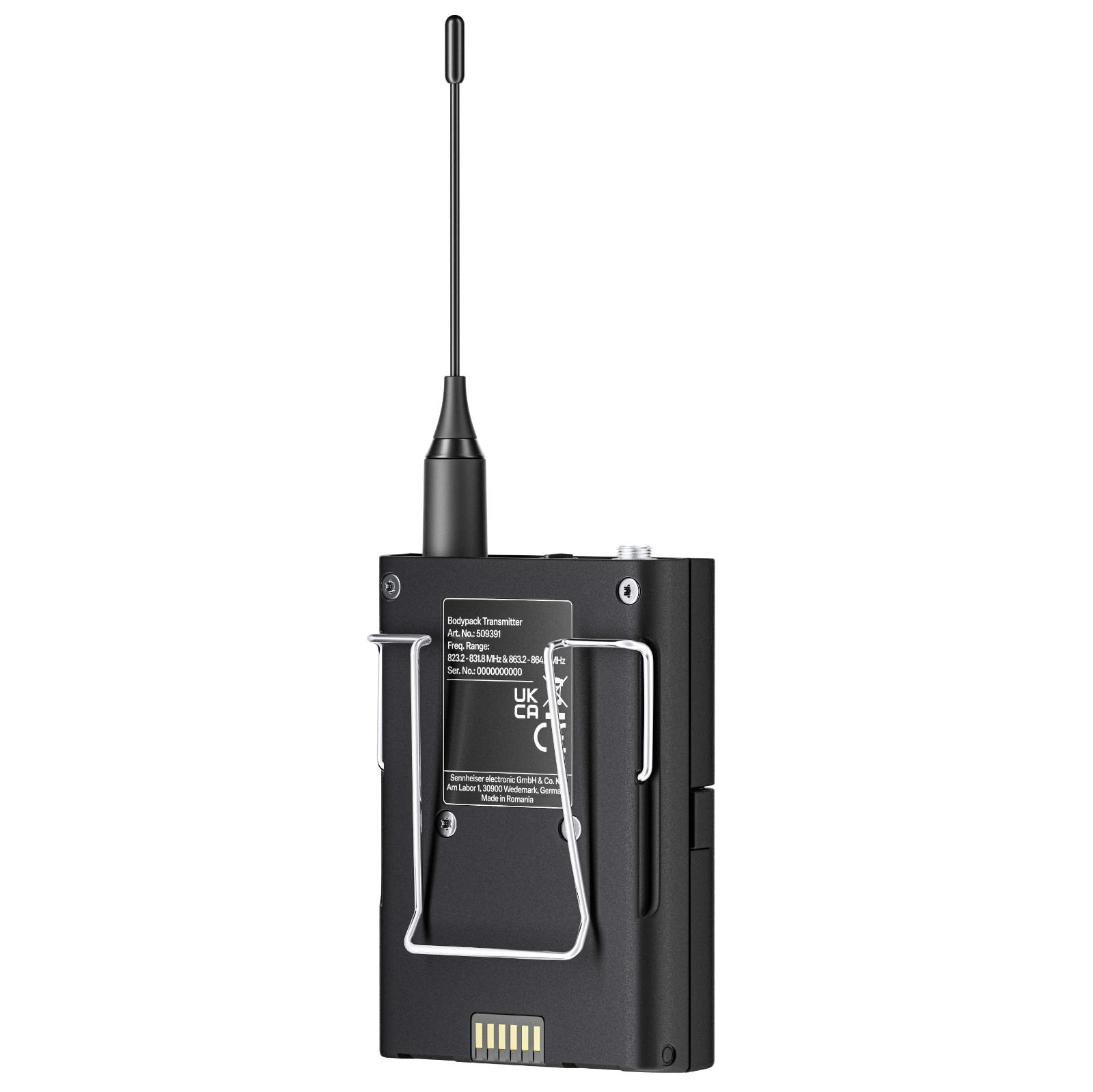

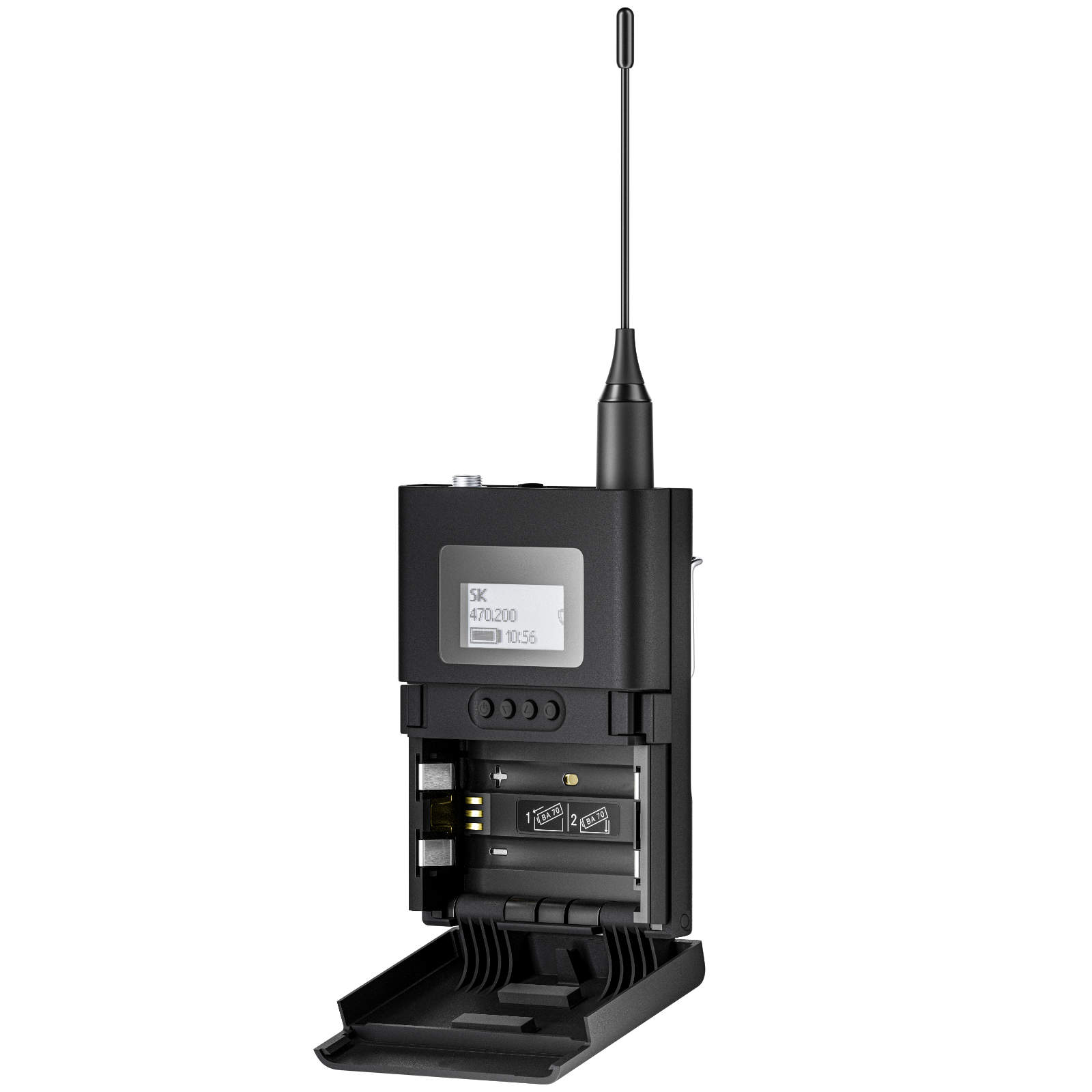

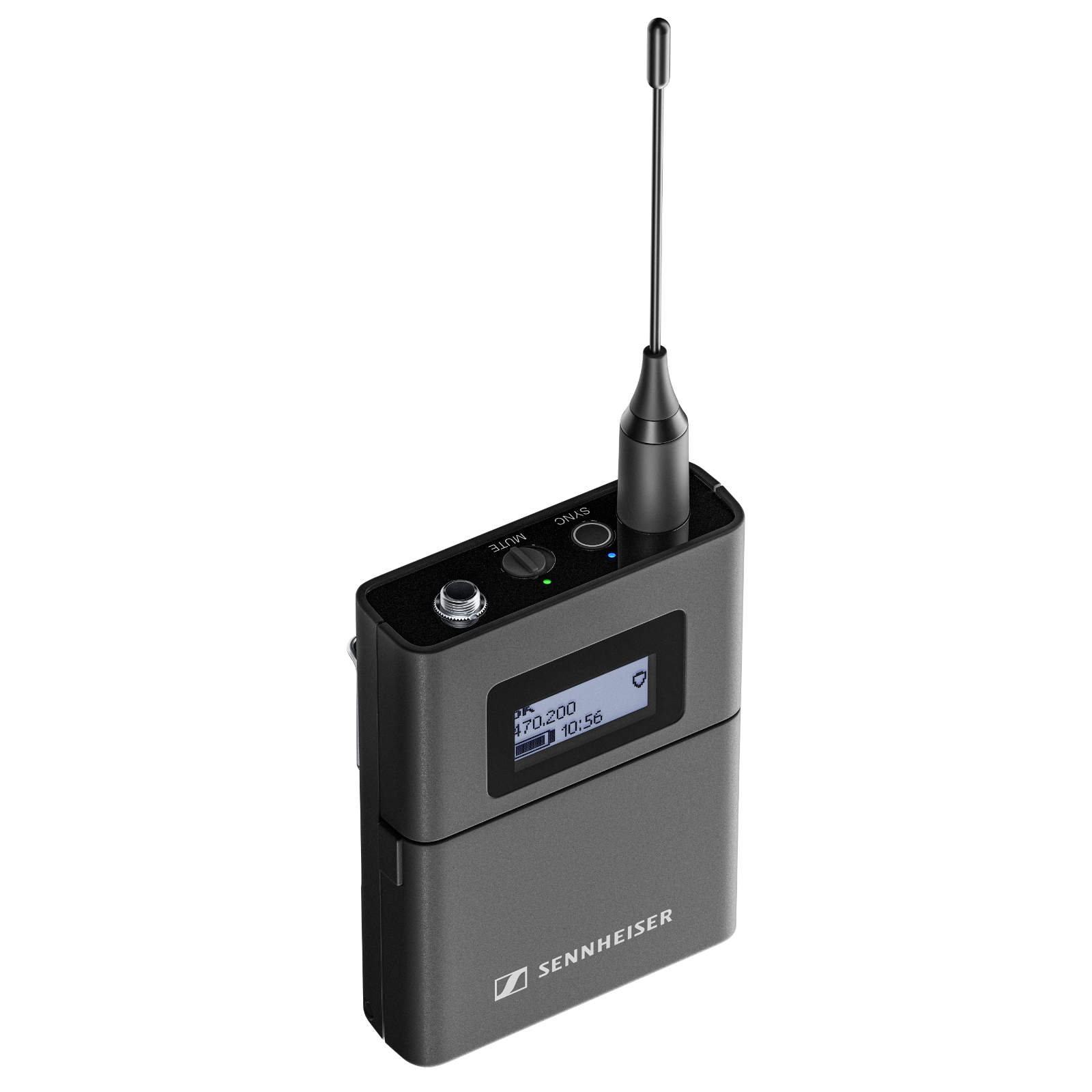

EW-DX SK FEATURES

  • 3,5 mm jack or 3-pin connector variants
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display – parameters visible on screen even when device is not powered on
  • Programmable mute switch – customize the device de- pending on your professional needs
  • Extended runtime with lithium ion batteries – up to 12 hours operation time
  • Mic input trim control
  • Metal housing

What’s in the box?

  • EW-DX EM 2 rack receiver
  • 2 EW-DX SK bodypack transmitters
  • 2 MKE 2 lavalier microphones
  • 2 Rod antennas
  • Power supply with country adapters
  • 2 Mic clips
  • GA 3 rackmount set
  • 4 Rubber feet
  • 2 BA 70 rechargeable battery packs • quick guide
  • Safety guide
  • Manufacturer declaration sheet

System

  • Audio link frequency ranges:
    • Q1-9:  470.2 – 550 MHz
    • R1-9:  520 – 607.8 MHz
    • S1-10:  606.2 – 693.8 MHz
    • S2-10:  614.2 – 693.8 MHz
    • S4-10:  630 – 693.8 MHz
    • U1/5:  823.2 – 831.8 MHz & 863.2 – 864.8 MHz
    • V3-4:  925.2 – 937.3 MHz
    • V5-7:  941.7 – 951.8 MHz & 953.05 – 956.05 MHz & 956.65 – 959.65 MHz
    • X1-6:  1350.2 – 1398.8 MHz
    • X9-18:  1435.2 – 1524.8 MHz
    • Y1-3:  1785.2 – 1799.8 MHz
  • Bluetooth® Low Energy (BLE) frequency range:  2402 – 2480 MHz
  • Audio frequency response:  20 Hz – 20 kHz (-3 dB)
  • Audio THD:
    • ≤ -60 dB for 1 kHz
    • @ -3 dBfs input level
  • Dynamic range:  134 dB
  • System latency:  1.9 ms
  • Operating temperature:  -10 °C – +55 °C (14 °F – 131 °F)
  • Relative humidity:  5 – 95 % (non-condensing)

 EW-DX EM 2 (Rack Reciever)

  • Input voltage:  11 – 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
  • Input current:  ≤ 1 A
  • Transmit power (radiated):  BLE: max. 10 mW EIRP
  • Audio output power:  18 dBu max.
  • Headphone output:  2x 70 mW @ 32 Ω
  • Ethernet:
    • RJ-45 socket, IEEE802.3
    • 100Base-TX (half+full duplex)
    • 10Base-T (half+full duplex)
    • (CAT5e or higher)
  • Dimensions:  212 x 44 x 189 mm (8.35″ x 1.73″ x 7.44″)
  • Weight:  approx. 1000 g (2.2  lbs) (without antennas and power supply)

MKE 2 (Lavalier Microphone)

  • Transducer principle:  pre-polarized condenser microphone
  • Pick-up pattern:  omni-directional
  • Sensitivity (free field, no load) (1 kHz):  5 mV/Pa +- 3 dB
  • Max. SPL at 1 kHz:  142 dB
  • Frequency response:  20 to 20,000 Hz
  • Equivalent noise level A-weighted:  26 dB
  • Connector:  3.5 mm jack
  • Cable length:  approx. 1.60 m (62.99″)
  • Supply voltage:  7.5 V

EW-DK SK (Bodypack Transmitter)

  • Input voltage:  2.0 – 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):
    • Audio link: 10 mW ERP
    • (Range Y1-3: 12 mW ERP)
    • LD mode: 10 mW ERP
    • BLE: max. 10 mW EIRP
  • Dimensions (without antenna):  63.5 x 85 x 20 mm (2.5″ x 3.35″ x 0.79″)
  • Weight (without batteries):   approx. 115-120 g (0.26- 0,27 – lbs)

Brand

Sennheiser

Sennheiser

DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
