Sennheiser ew122 G3

Discontinued
  • Radio mic sytem – True Diversity
  • With ME 4 cardioid (directional) clip-on microphone
  • Pro quality presentation wireless system
  • Rack mountable (rack kit not included)
Sennheiser
Tag: Category: SKU: RM/LAP/SENG302

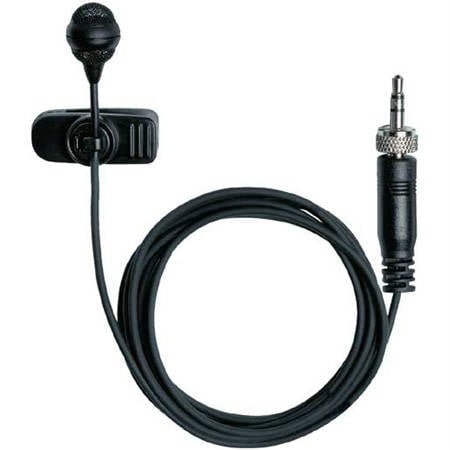

Discrete and easy on the voice: the compact cardioid clip-on microphone in this system rejects noises coming from the side which means less risk of feedback. Without having to speak very loudly, the presenter’s voice is delivered in a rich and full manner.

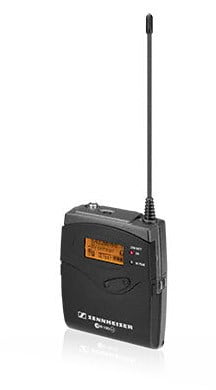

The bodypack transmitter features charging contacts for the optional rechargeable battery. Sync up the bodypack to the receiver wirelessly with the new wireless sync. Lastly, the true diversity receiver provides for reliable signal transmission, even in large rooms.

If you do intend to run on Channel 38 you will require a licence from Ofcom. Operating on Channel 70 will not require a licence.

Features:

  • Sturdy metal housing (transmitter and receiver
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indication in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

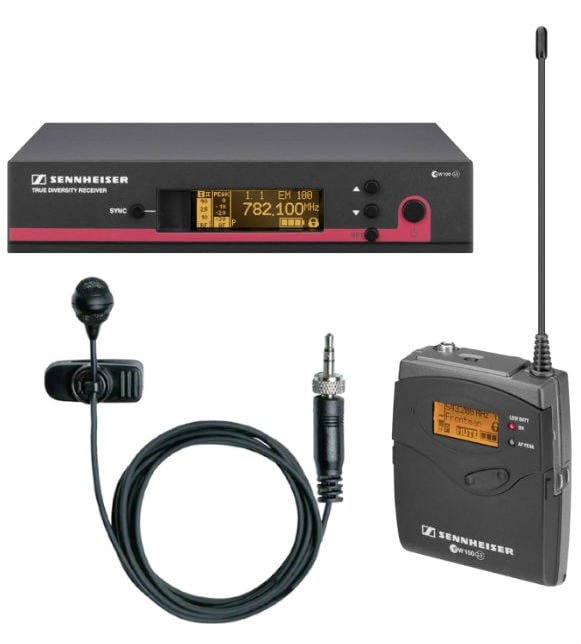

Delivery Includes:
1 EM 100 G3 rack-mount receiver
1 SK 100 G3 bodypack transmitter
1 ME 4 clip-on microphone (cardioid)
1 NT 2 power supply unit
2 antennas
2 stacking elements
2 AA batteries
Operating instructions

NOTE: If using rechargeable batteries we recommend Nickel Metal Hydride (NiMH) type.

Technical Data
RF frequency range 516….. 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: 18 dBu max
Audio output level (unbalanced) Jack: 12 dBu max
Battery Specification 10,5 – 16 V DC battery AA (Mignon)
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 900 g
RF output power 30 mW
Battery Specification 2x 1.5 V battery AA (Mignon)
Operating time (transmitter) typ. 8 h
Input voltage range 1,8 V line
Input voltage range 3,0 V eff line

Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
Transducer; Microphone type elektret
AF sensitivity 40 mV/Pa
Sound pressure level (SPL) 120 dB(SPL) max.
Pick-up pattern cardioid

Brand

Sennheiser

Sennheiser

DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
Sennheiser
