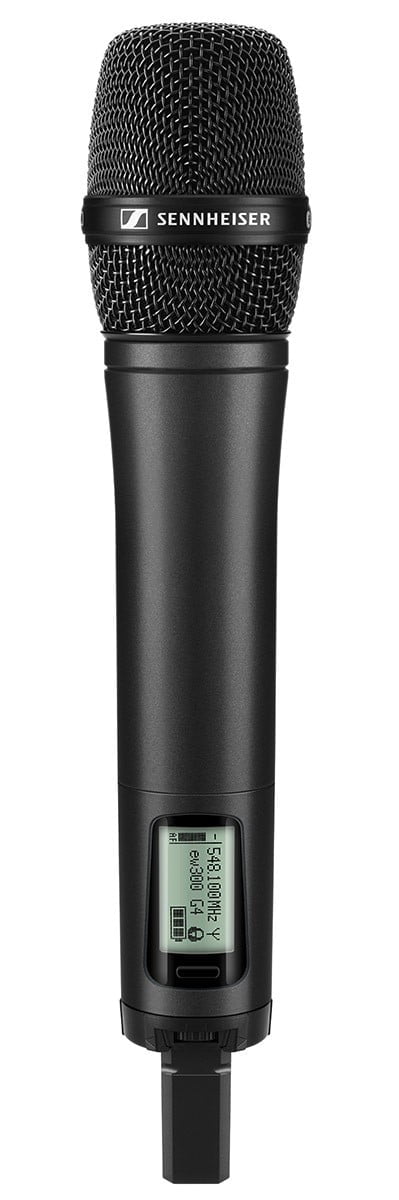

Powerful handheld transmitter with a lightweight aluminium housing, increased bandwidth and transmission power, and integrated mute switch for evolution wireless G4 300 Series systems, delivering exceptional speech intelligibility.
- Easy to use, fast setup time
- Up to 88 MHz bandwidth, up to 32 channels
- Choice of Mic Capsule (mic capsule not included)
- Transmission Range: up to 100 meters / 330 feet
- Mute Switch
FEATURES
- Powerful handheld transmitter with a lightweight aluminium housing for use with the renowned e 865 capsule (recommended)
- Easy to use, fast setup time
- Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 88 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 PRO
DELIVERY INCLUDES
- SKM 300 G4-S handheld transmitter
- MZQ 1 microphone clamp
- 2 AA batteries
- pouch
- quick guide
- safety guide
- manufacturer declaration sheet
SKM 300 G4
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 – 558 MHz
AS: 520 – 558 MHz
Gw1: 558 – 608 MHz
Gw: 558 – 626 MHz
GBw: 606 – 678 MHz
Bw: 526 – 698 MHz
Cw: 718 – 790 MHz
Dw: 790 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
Max. 2880 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-pre-set channels, no intermodulation
6 frequency banks with up to 32 programmable channels
Switching bandwidth up to 72 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 115 dBA
Total harmonic distortion (THD) ≤ 0.9 %
Setting range for input sensitivity 48 dB, adjustable in 6 dB steps
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 μA
Operating time Typically 8 h
Dimensions Approx. Ø 50 x 265 mm
Weight (incl. batteries) approx. 450 g
