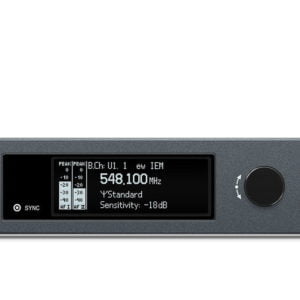

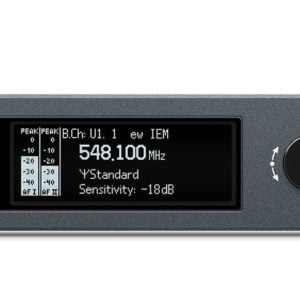

Half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- Rack Mountable (rack mount kit included)
FEATURES
- Half-rack stereo transmitter in a full-metal housing with OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
DELIVERY INCLUDES
- SR IEM G4 stereo transmitter
- rod antenna
- power supply
- GA 3 rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
SR IEM G4
RF characteristics
Modulation Wideband FM stereo (MPX pilot tone)
Frequency ranges
A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
G: 566 – 608 MHz
GB: 606 – 648 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
Receiving frequencies Max. 1680 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
6 frequency banks with up to 16 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
MPX pilot tone (frequency/deviation) 19 kHz/±5 kHz
Frequency stability ±10 ppm
Antenna output BNC socket, 50 Ω RF output power at 50 Ω switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
AF characteristics
Compander system Sennheiser HDX
AF frequency response 25 Hz to 15 kHz
AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II)
2x XLR-3/1⁄4″ (6.3 mm) jack combo socket, electronically balanced
Max. input level +22 dBu
Total harmonic distortion (THD) <0.9 %
Signal-to-noise ratio (at nominal load and peak deviation) >90 dB
AF output LOOP OUT BAL L (I)/ LOOP OUT BAL R (II)
1⁄4″ (6.3 mm) stereo jack socket, balanced
Overall device
Temperature range -10 °C to +55 °C
Power supply 12 V DC
Current consumption max. 350 mA
Dimensions Approx. 202 x 212 x 43 mm
Weight Approx. 980 g
