- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via
- remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

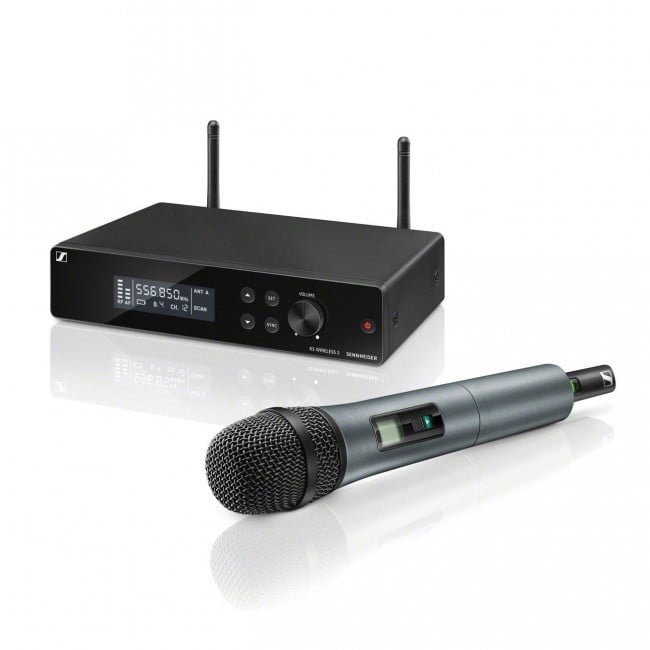

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail.
True Diversity receiver in a metal housing and rackmount kit included.
FEATURES
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via
- remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
WHAT’S IN THE BOX?
- 1 receiver EM-XSW 2
- 1 handheld transmitter SKM 865-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
Receivers
Dimensions approx. 200 x 42 x 127 mm
Weight approx. 680g
Power supply 12 V DC nom. / 300 mA
Housing metal, microphone: robust ABS
AF frequency response 50 to 16,000 Hz (–3 dB)
Microphone
Dimensions approx. 260 x 50 mm
Weight approx. 245g
Operating time approx. 10 hrs
Power supply 2 AA size batteries, 1.5 V
AF frequency response 80-16,000 Hz
Microphone condenser
Frequency response 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern super-cardioid
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Modulation wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): 6 dBu, XLR socket (balanced): 12 dBu
Frequency 8 frequency banks, each with up to 12 factory-preset channels
Frequency range A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity 1.8 mV / Pa
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 40 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to 40°C, storage: –20°C to 70°C
Receiver Principle double superheterodyne
Diversity principle True Diversity
Brand
Sennheiser
Sennheiser
DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
