- Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

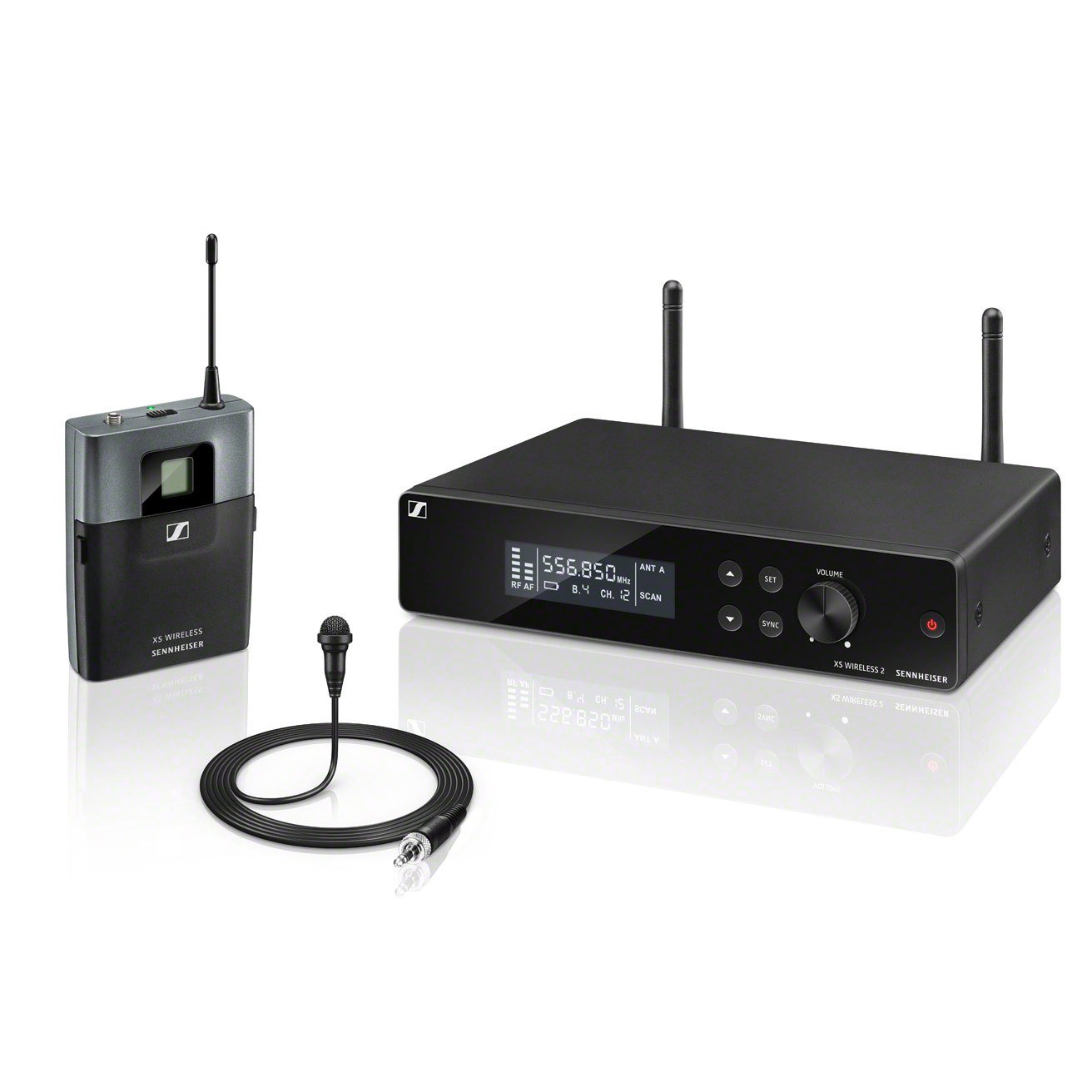

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.
FEATURES
Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels
WHAT’S IN THE BOX?
1 receiver EM-XSW 2

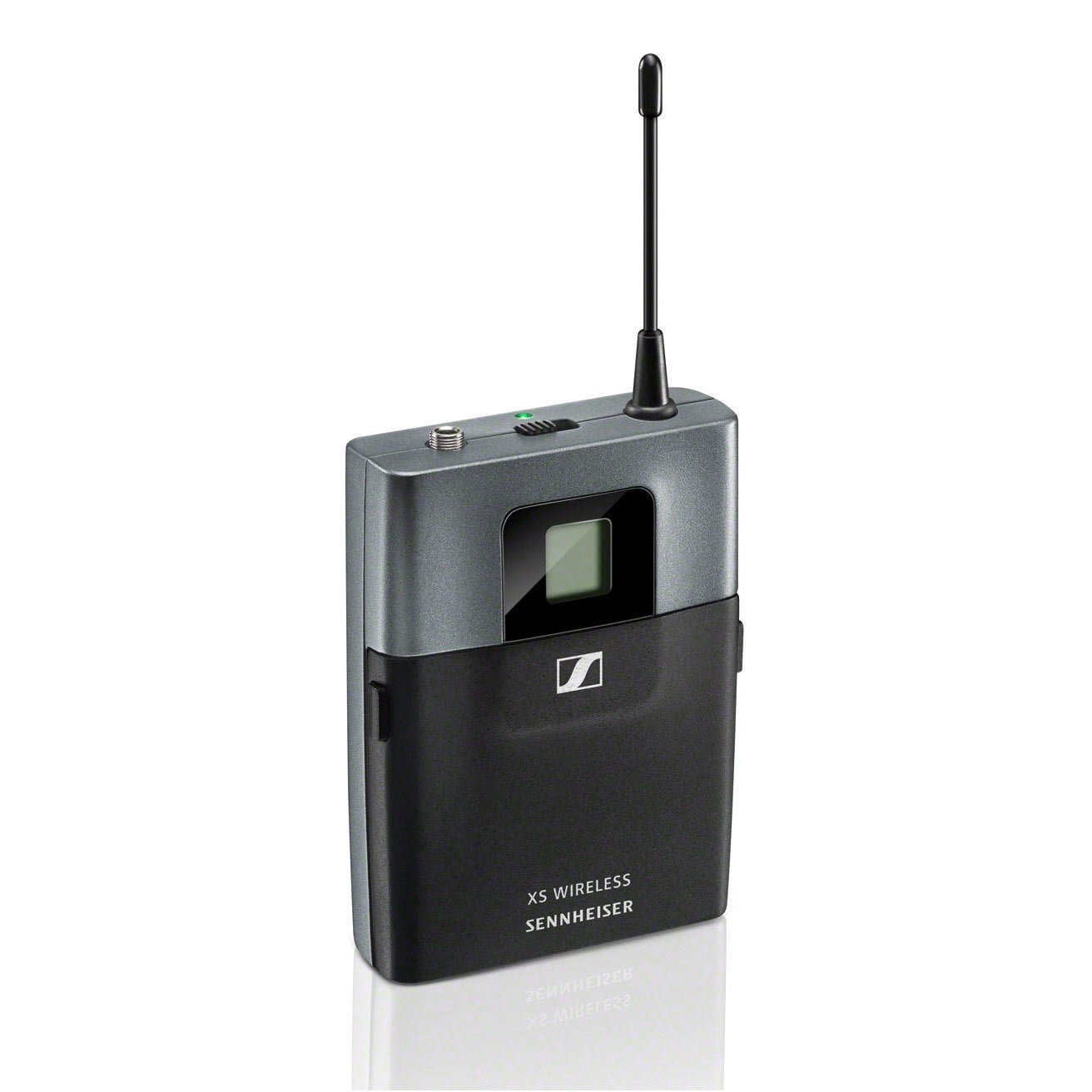

1 bodypack transmitter SK-XSW

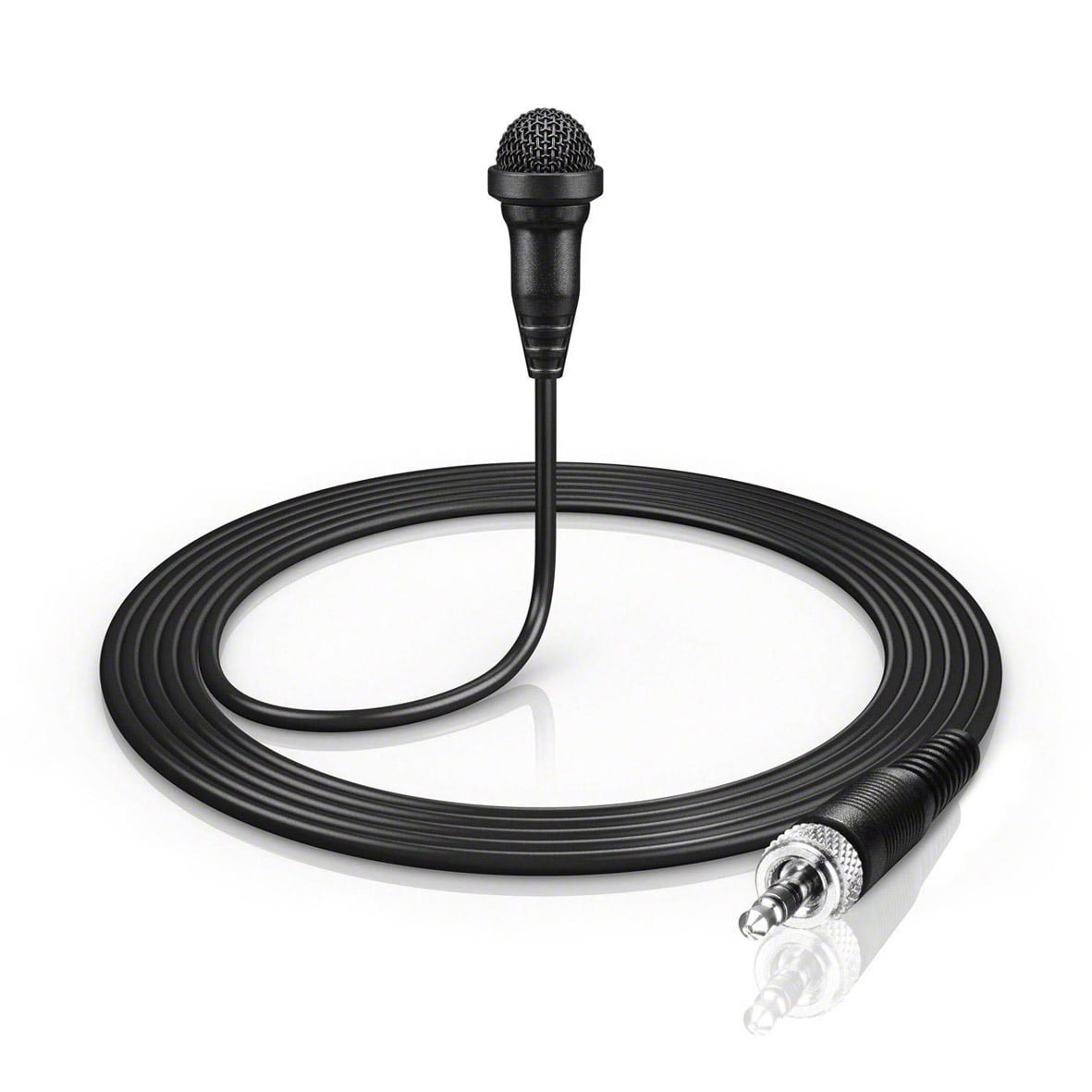

1 lavalier microphone ME 2-2
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
Receivers
Dimensions approx. 200 x 42 x 127 mm
Weight approx. 680g
Power supply 12 V DC nom. / 300 mA
Housing Metal
AF frequency response 50 to 16,000 Hz
Transmitter
Dimensions approx. 71 x 96 x 28 mm
Weight approx. 95g
Operating time approx. 10 hrs
Power supply 2 AA size batteries, 1.5 V
Housing Robust ABS
AF frequency response 50 to 16,000 Hz (–3 dB)
Microphone Condenser
Frequency response 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern Omni-directional
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Modulation Wideband FM
Output voltage ‘1/4“ (6.3 mm) jack socket (unbalanced): 6 dBu, XLR socket (balanced): 12 dBu
Diversity reception True Diversity
Frequency 8 frequency banks, each with up to 12 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 40 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to 40°C, storage: –20°C to 70°C
Receiver Principle double superheterodyne
