£170.00 Inc VAT

PDA103R Small Room Loop Kit

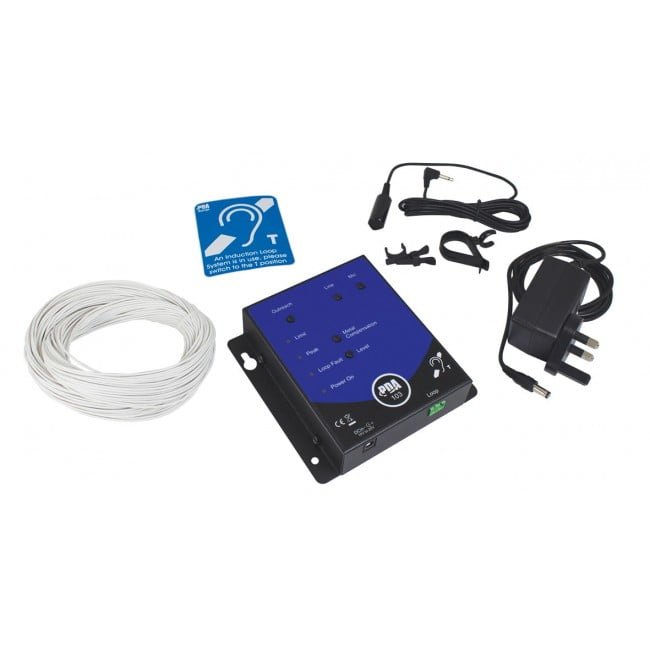

  • Each kit contains everything you need to create a high quality hearing loop system for a room up to 50m2 (7m x 7m)
  • Adjustable mic, line level and ‘outreach’ controls.
  • State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
  • Limit, Peak, Loop Fault and Power On indicators
Signet
Category: SKU: AM/LOO/SIG27

SigNET manufactures the UK’s widest range of audio-frequency induction loop equipment for the hard of hearing. From a simple portable loop system for a ticket office to a top quality professional loop system for a cinema or theatre, our PDA RANGE is highly cost effective and includes a wide range of kits to help simplify specification, purchase and installation.

  • Each kit contains everything you need to create a high quality hearing loop system for a room up to 50m2 (7m x 7m)

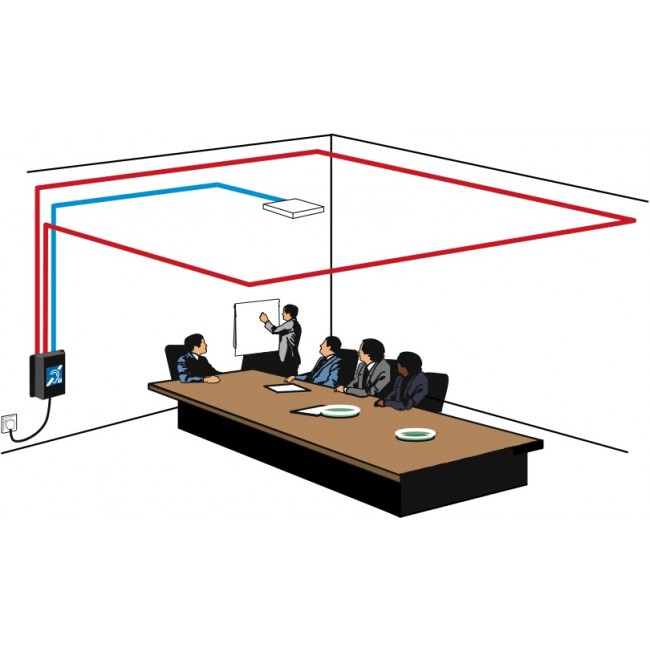

  • PDA103R kit ideal for small room applications where equipment needs be mounted above suspended ceilings, etc.
  • PDA103 amplifier includes a 3.5mm microphone input, a line level input and an ‘outreach’ socket
  • Metal compensation control helps improve intelligibility in rooms with high metal content
  • Adjustable mic, line level and ‘outreach’ controls.
  • Drive (level) control allows the amplifier’s output stage to be set-up to suit the exact characteristics of the application.
  • State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
  • Limit, Peak, Loop Fault and Power On indicators
  • Designed to be wall-mounted using the keyholes provided
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed



Hearing Loop Type: Wall mountable. Plugtop mains lead supplied.
Coverage: 50m2 approx.
Amplifier dimensions: W 135mm x H 130mm x D 35mm  (including controls). Weight: 380g (amplifier only).
Kit box dimensions: W 340 mm x H 250mm x D 70mm
Inputs: 1 x 3.5mm mic. socket; 1 x 3.5mm line level socket, 1 x Outreach socket
Indicators: Limit; Peak; Loop Fault; Power On.
Controls: Mic; Line; Outreach; Metal Compensation; Loop Drive (Level)
