PDA103S Domestic Loop Kit

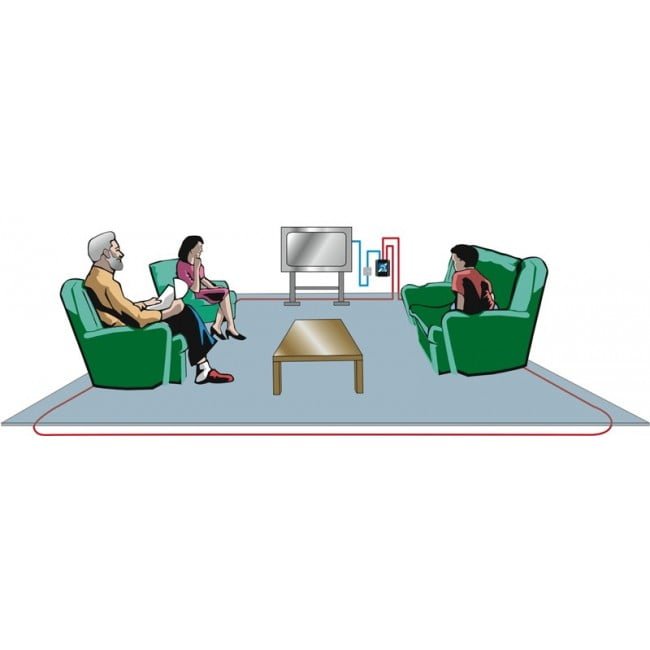

- Includes everything you need to create a high quality domestic hearing loop system for bedrooms, living rooms, TV lounges and studies up to 50m2 in size (7m x 7m)
- Designed to connect to TV sets using the amplifier’s ‘Outreach’ connector via the APL plate and SCART lead supplied.
- Adjustable mic, line level, ‘digital’ and ‘outreach’ controls.
- Limit, Peak, Loop Fault and Power On indicators
SigNET manufactures the UK’s widest range of audio-frequency induction loop equipment for the hard of hearing. From a simple portable loop system for a ticket office to a top quality professional loop system for a cinema or theatre, our PDA RANGE is highly cost effective and includes a wide range of kits to help simplify specification, purchase and installation.
- Includes everything you need to create a high quality domestic hearing loop system for bedrooms, living rooms, TV lounges and studies up to 50m2 in size (7m x 7m)
- PDA103 amplifier includes a 3.5mm microphone input, a line level input, a digital ‘TOS’ link connector and an ‘outreach’ socket
- Designed to connect to TV sets using the amplifier’s ‘Outreach’ connector via the APL plate and SCART lead supplied.
- Alternatively, the amplifier can be connected to TV sets using the amplifier’s onboard Digital TOS-link connector and a separately available TOS-link cable. See main instructions for further details.
- Metal compensation control helps improve intelligibility in rooms with high metal content
- Adjustable mic, line level, ‘digital’ and ‘outreach’ controls.
- Drive (level) control allows the amplifier’s output stage to be set-up to suit the exact characteristics of the application.
- State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
- Limit, Peak, Loop Fault and Power On indicators
- Designed to be wall-mounted using the keyholes provided
- Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
Hearing Loop Type: Wall mountable. Plugtop mains lead supplied.
Coverage: 50m2 approx.
Amplifier dimensions: W 135mm x H 130mm x D 35mm (including controls). Weight: 385g (amplifier only).
Kit box dimensions: W 340 mm x H 250mm x D 70mm
Inputs: 1 x 3.5mm mic. socket; 1 x 3.5mm line level socket, 1 x Digital TOS link connector; 1 x Outreach socket
Indicators: Limit; Peak; Loop Fault; Power On.
Controls: Mic; Line; Outreach; Metal Compensation; Loop Drive (Level)

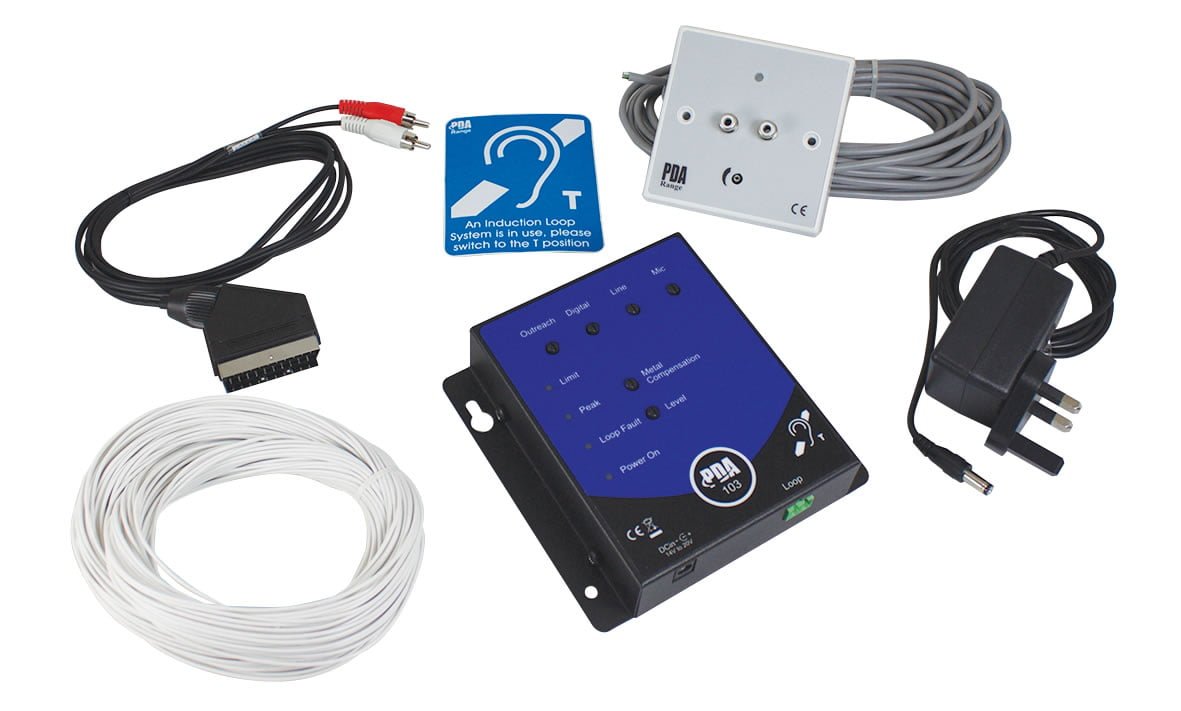

Kit contents: PDA103 amplifier c/w digital TOS link connector; PL1/PSU1 plugtop power supply; APL double phone outreach connection plate; 6m ‘Belden’ cable; APS SCART to double phono lead; 40m loop cable; ‘Hearing Loop Fitted’ sticker.
