Dynamic mic ideal for Vocals (singing)
- True Diversity radio reception
- Rack Mountable receiver
- Use with Remote Aerial system for improved radio reception
- Available in channel 70 (no licence required) and Channel 38 (licence required)
This mic is not best suited as a speech or ‘roaming’ mic as it is designed to be used close up to the mouth. For a roaming handheld radio mic system please see the TOA 5000 series CONDENSER mic system (Condenser mic WM 5225). The dynamic mic capsule is ideal for vocals and is rugged and reliable for many years high quality service.
Available in channel 70 (no licence required) and Channel 38 (licence required) – please select

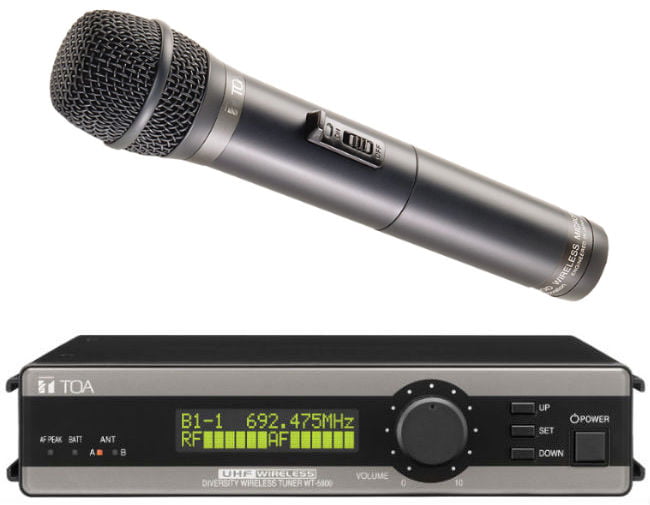

System includes:

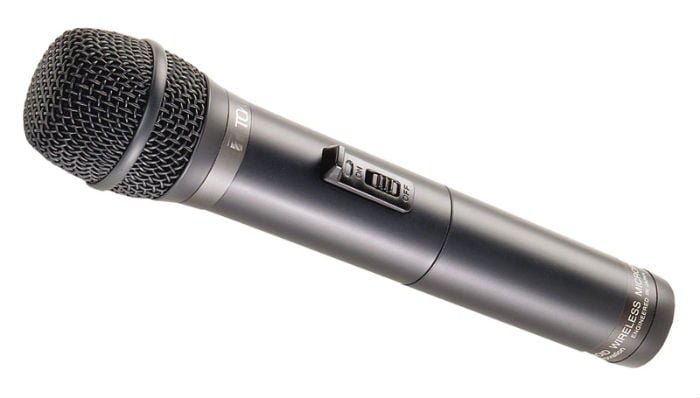

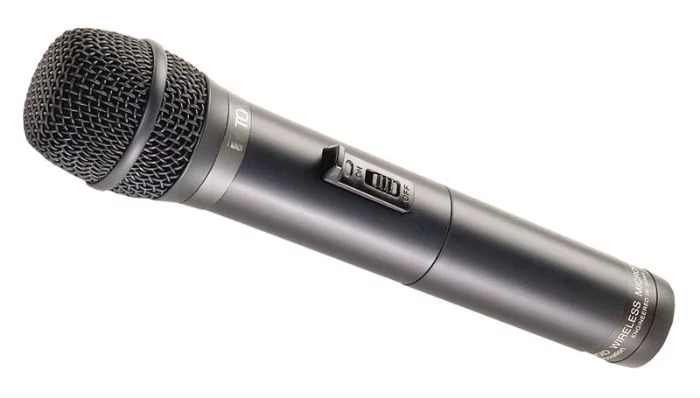

WM5265 hand held dynamic vocal microphone

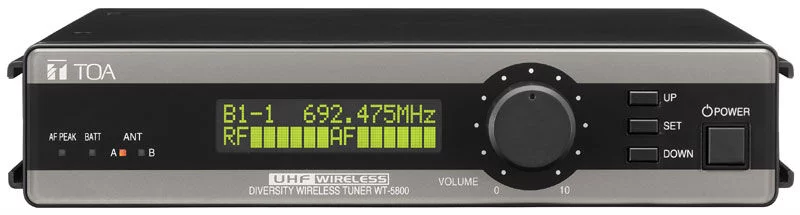

WT5800 True Diversity receiver unit
Mic clip
Power supply
FEATURES
- Rack mountable
- True Diversity
- 16 Switchable frequencies!! You won’t run out of channels!
- Balanced XLR Output
- Digital display
- Superb build quality
- Stable UHF transmission
- Economical to run – more than 10hrs from a single AA battery (not included)
We recommend that you use qualitu branded disposable or NiMH rechargeable batteries for radio mic systems.
Specifications
Model Number WT-5800 receiver
Power Source 120 V AC (Supplied AC-DC adapter must be used.)
Power Consumption 250 mA (12 V DC)
Receiving Frequency 636 ¤ 698 MHz, UHF
Selectable Channel 64 selectable frequencies
Receiving System Double super-heterodyne
Diversity System true diversity)

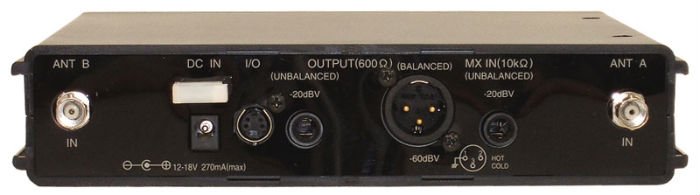

AF Output MIC/LINE: ¤60 dB* (MIC)/¤20 dB* (LINE) selectable, 600 ?
Phone jack (unbalanced), XLR-3-31 type connector (balanced)
AF Mixing Input ¤20 dB*, 10 k?, unbalanced, phone jack
Antenna Input 75?, BNC (phantom powering for antenna), 9 V DC, 30 mA (max)
Antenna Output 75?, BNC (Gain 0 dB)
Receiving Sensitivity Over 90 dB, S/N ratio (20 dB?V input, 40 kHz deviation)
Squelch Sensitivity 18 ¤ 40 dB?V variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Tone Frequency 32.768 kHz
Indicator Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm
Channel Check Usable frequencies scanning
S/N Ratio Over 110 dB (A-weight, unbalanced output)
Harmonic Distortion Under 1% (typical)
Frequency Response 100 ¤ 15000 Hz, ñ3 dB
Operating Temperature ¤10?C to 50?C
Finish Resin, black
Dimensions 210 (w) x 44 (h) x 205.1 (d) mm
Weight 700 g
