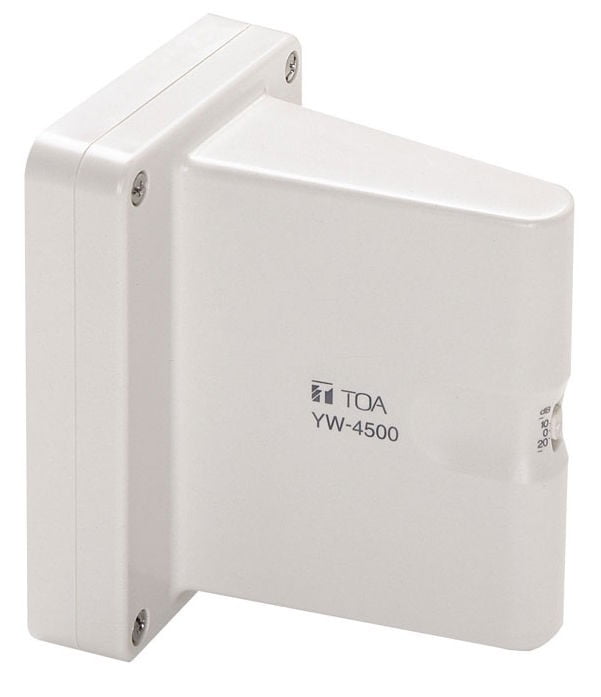

Indoor, wall mounted, dipole antenna. Built-in RF signal boost.
Indoor, wall mounted, dipole antenna. Built-in RF signal boost. By mounting 2 of these antennae and connecting to the TOA receivers you can vastly improve radio reception – ideal for difficult building layouts, separate rooms etc. Don’t forget to add your required length aerial cable.
Power Source 7 – 12 V DC (supplied from amplifier or tuner)
Current Consumption 24 mA or less
Receiving Frequency 630 – 880 MHz, UHF
Dipole Ratio Relative Gain 8 dB or more (780 MHz)
V.S.W.R 3.0 or less
Output Impedance 75 Ω
Mounting Hole Pitch 83.5 mm (dimensions for wiring box)
Operating Temperature -10%Ü to 50%Ü
Finish AES resin, off-white
Dimensions 105 (W) × 140 (H) × 126 (D) mm
Weight 270 g
Accessory M3.5 screw for wiring box…2, Tapping screw (M4) for wooden wall…2,
RG-6/U or RG-11/U sleeve…1
