Trantec S4.10 6Way Rack’n’Ready Kit (Channel 38)

Call for price

6 Way Trantec S4.10 Rack ‘n’ Ready system with ADU, PSU and Flight Case – Channel 38

  • USB based computer monitoring
  • Simple programming of transmitters via infra-red
  • Single AA transmitter battery life of approx. 10 hours
  • 6 x Trantec S4.10 receiver
  • 6 x Trantec S4.10 transmitters in any combination of handheld or beltpack (includes LP2 lapel microphone)
  • Antenna
  • Rack mounting trays
  • Flight case
  • Power supply allowing 1 single cable for assembled rack
  • 230v ac 50Hz UK plug Trantec product code: S4.10L-G3-RACK-6W
Trantec
Categories: , SKU: RM/PACK/TRA03-1

The Trantec S4.10 UHF system boasts a multi-function receiver, 16 selectable frequencies and the latest PLL quartz tuning technology, making it the ultimate choice when looking for a product that will address your demands now, and into the future.

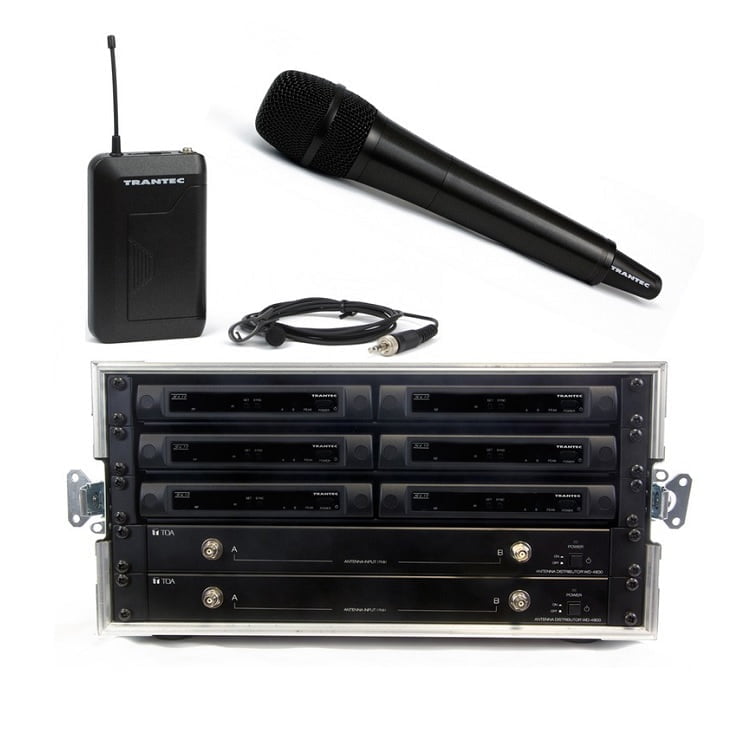

Assembled packages include:

  • 6 x S4.10 receivers with LED’s showing AF peak level, RF level & diversity channel A or B
  • 6 x S4.10 transmitters in any combination of beltpack (includes LP2 lapel microphone) or handheld
  • Antenna Distribution Unit
  • Power Supply
  • Rack Mounting Trays
  • 2 x Antennae
  • 19″ Professional Flight Case.

Optional Remote Antenna Kit (not included) includes:

  • 2 x 10m antenna cables
  • 2 x antenna head amplifiers
  • 2 x antenna stands.

Customised options available on request:

  • Contact your local distributor for further information.

Whether you opt for a 4, 6,  8 or 10 channel Racked’n’Ready system, these unique, compact, turnkey packages will be ideal for your hire stock, and appeal to schools, amateur dramatics, churches, and audio-visual applications.

Technical  Specification

Trantec S4.10 Receiver
Diversity Reception Antenna Diversity
Sensitivity 10uV at 45dBA, S/N
Squelch Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response 50Hz – 15kHz
Audio Output Level Balanced (XLR socket): -20dBu
Unbalanced (1/4″ jack socket): 10dBu
Power Supply 12 VDC 500mA – UK power supply
Dimensions 215(W) x 39(H) x 102(D)mm
excluding antenna and BNC
Weight 480g
Trantec S4.10 Handheld Transmitter
RF Carrier Power 10mW
Audio Frequency Response 80Hz – 15kHz
Audio Input Level 140 dBSPL(maximum)
Battery 1 x AA alkaline, 1.5V
Battery Life Approx. 10 hours
Finish Resin, coating
Dimensions 250 x 55mm
Weight 245g with battery
Trantec S4.10 Beltpack Transmitter
 RF Carrier Power  10 mW
 Audio Frequency Response  50Hz – 15kHz
 Audio Input Level  -6dBV (maximum), mic gain 0dB
 Microphone connection  3.5mm screw lockable
 Battery Life  Approx. 10 hours
 Battery  1 x AA alkaline, 1.5V
 Finish  Resin, Coating
 Dimensions  62(W) x 100(H) x 25(D)mm
 Weight  85g with battery
