Trantec S4.10 Handheld Radio System (Dynamic)

Call for price

Trantec S4.10 – UHF Hand held Radio Microphone System with Dynamic Capsule

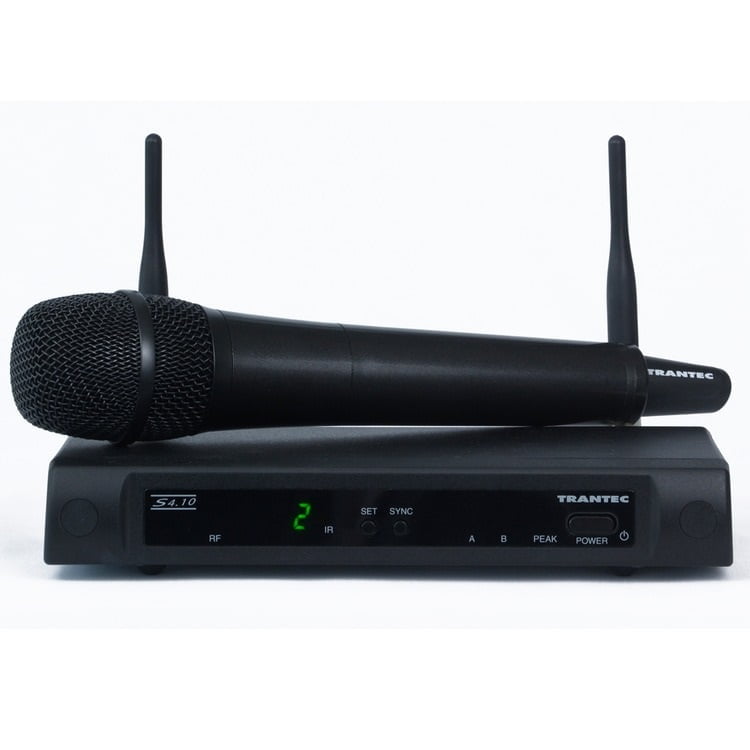

The S4.10 Series Handheld microphone system comes with a wireless handheld microphone and a mains powered UHF wireless receiver.

Available on channel 38 (606-614MHz) or channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers
Trantec
Category: SKU: RM/HH/TRA030-1

Trantec S4.10 – UHF Hand held Radio Microphone System with Dynamic Capsule has 16 selectable frequencies with up to 10 simultaneous use channels – replaces S4.16H.

The S4.10 now features auto channel frequency syncing of the transmitter to the receiver.

The S4.10 Series Handheld microphone system comes with a wireless handheld microphone and a mains powered UHF wireless receiver.

Available on channel 38 (606-614MHz) or channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers

Trantec product code: channel 38 S4.10-HD-EB-GG3 / channel 70 S4.10-HD-EB-GD4

Please note that in the UK the frequencies in Channel 70 are licence free, to use the frequencies in Channel 38 you need to apply for a licence. For further information please visit the OFCOM website.

Specifications
Trantec S4.10 Receiver
Diversity Reception Antenna Diversity
Sensitivity 10uV at 45dBA, S/N
Squelch Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response 50Hz – 15kHz
Audio Output Level Balanced (XLR socket): -20dBu
Unbalanced (1/4″ jack socket): 10dBu
Power Supply 12 VDC 500mA – UK power supply
Dimensions 215(W) x 39(H) x 102(D)mm
excluding antenna and BNC
Weight 480g

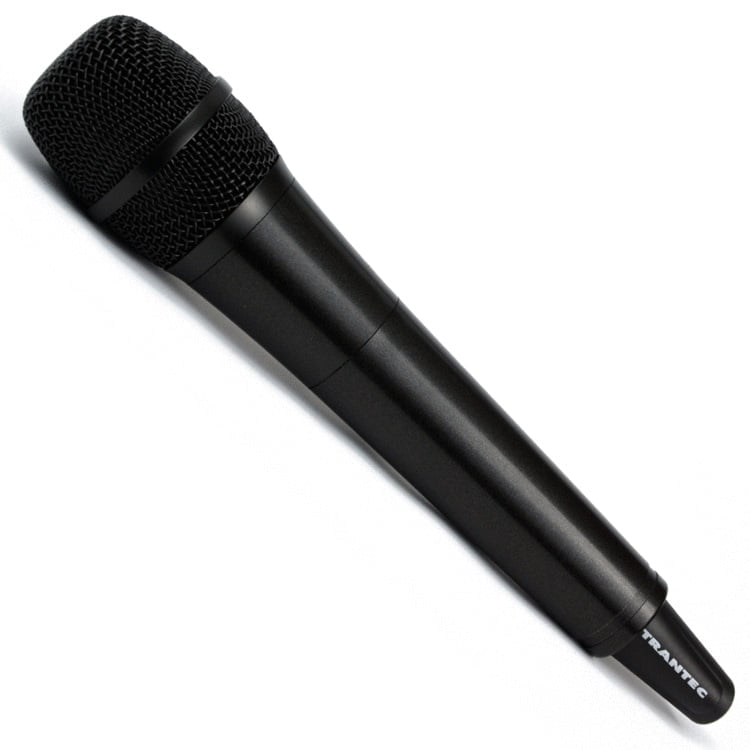

Trantec S4.10 Handheld Transmitter
RF Carrier Power 10mW
Audio Frequency Response 80Hz – 15kHz
Audio Input Level 140 dBSPL(maximum)
Battery 1 x AA alkaline, 1.5V
Battery Life Approx. 10 hours
Finish Resin, coating
Dimensions 250 x 55mm
Weight 245g with battery
