Trantec S4.10 Lapel Radio System

Call for price

Trantec S4.10 – UHF Lapel Radio Microphone System

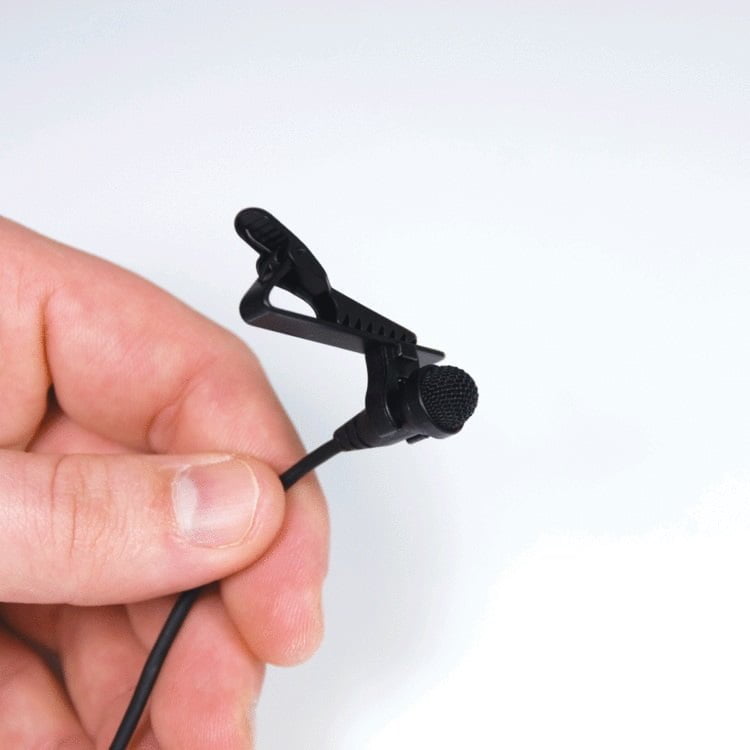

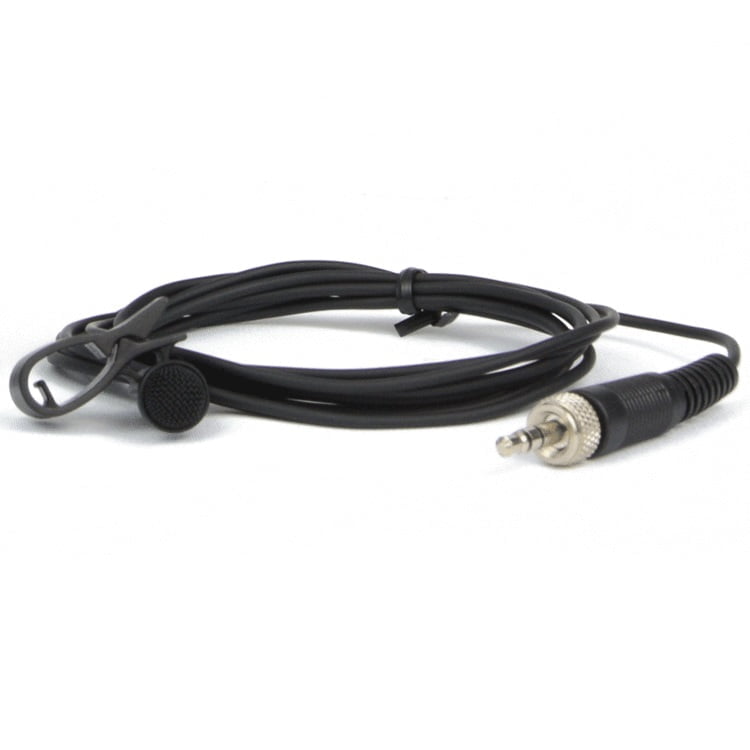

The S4.10 Lapel Radio microphone system comes with a beltpack and LP2 lapel microphone and a mains powered UHF wireless receiver.

Available on channel 38 (606-614MHz) or channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers
Trantec
Category: SKU: RM/LAP/TRA04-1-1

Trantec S4.10 – UHF Lapel Radio Microphone System has 16 selectable frequencies with up to 10 simultaneous use channels – replaces S4.16H.

The S4.10 now features auto channel frequency syncing of the transmitter to the receiver.

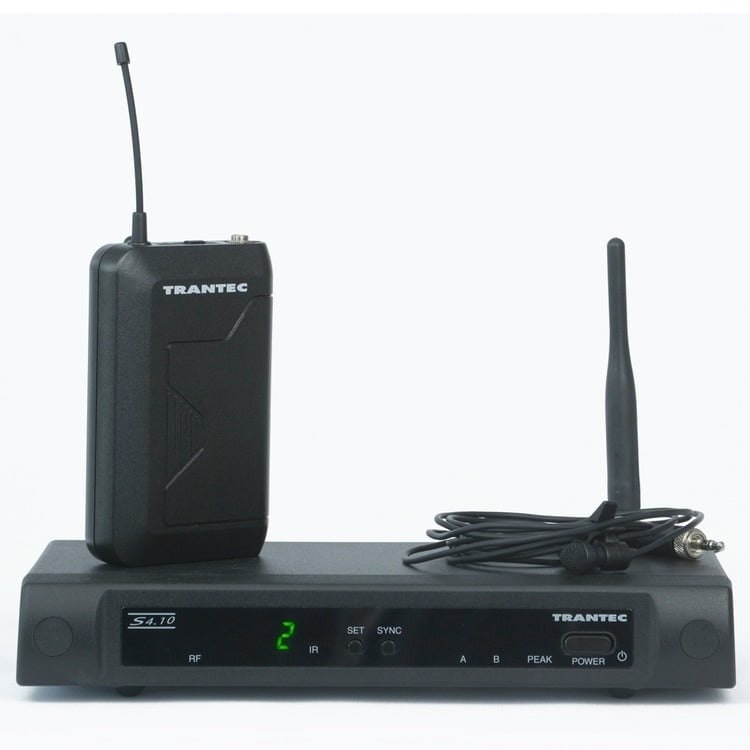

The S4.10 Lapel Radio microphone system comes with a beltpack and LP2 lapel microphone and a mains powered UHF wireless receiver.

Available on channel 38 (606-614MHz) or channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers

Trantec product code: channel 38 S4.10-L-EB-GG3 / channel 70 S4.10-L-EB-GD4

Please note that in the UK the frequencies in Channel 70 are licence free, to use the frequencies in Channel 38 you need to apply for a licence. For further information please visit the OFCOM website.

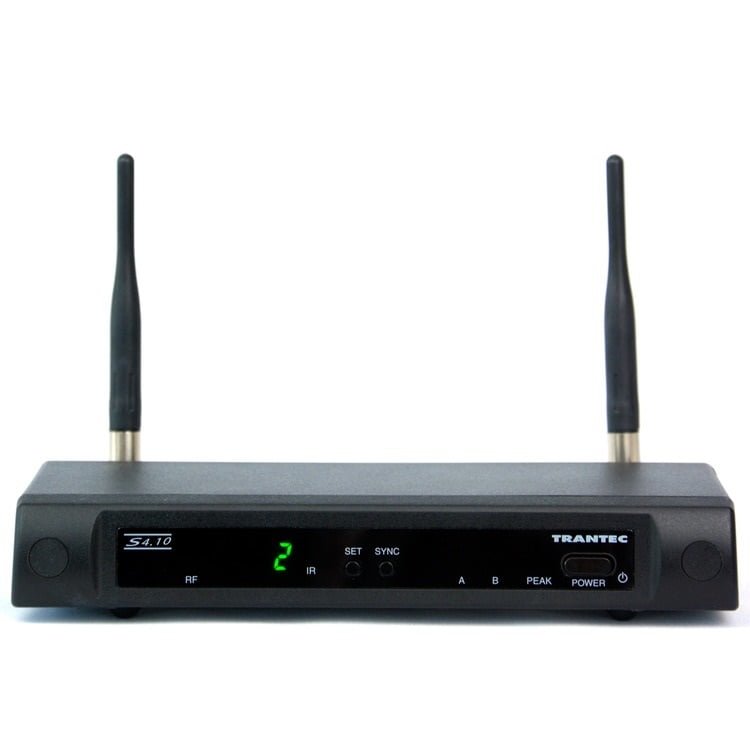

Specifications Trantec S4.10 Receiver
Diversity Reception: Antenna Diversity
Sensitivity: 10uV at 45dBA, S/N
Squelch: Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response: 50Hz – 15kHz
Audio Output Level: Balanced (XLR socket): -20dBu / Unbalanced (1/4″ jack socket): 10dBu
Power Supply: 12 VDC 500mA – UK power supply
Dimensions: 215(W) x 39(H) x 102(D)mm excluding antenna and BNC
Weight: 480g

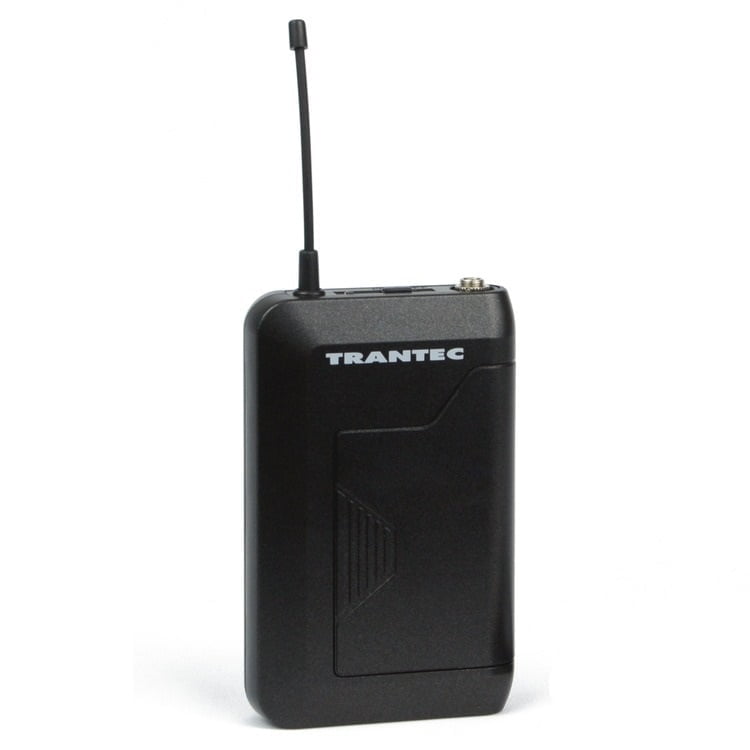

Trantec S4.10 Beltpack Transmitter
RF Carrier Power: 10mW
Audio Frequency Response: 50Hz – 15kHz
Audio Input Level: -6 dBV (maximum), mic gain 0dB
Battery: 1 x AA alkaline, 1.5V
Battery Life: Approx. 10 hours
Finish: Resin, coating
Dimensions: 62(W) x 100(H) x 25(D)mm (With clip)
Weight: 85g with battery

Brand

Trantec

Trantec
