Trantec S4.10 Theatre Headmic Radio System

Call for price

Trantec S4.10 – UHF Theatre Headmic Radio Microphone System

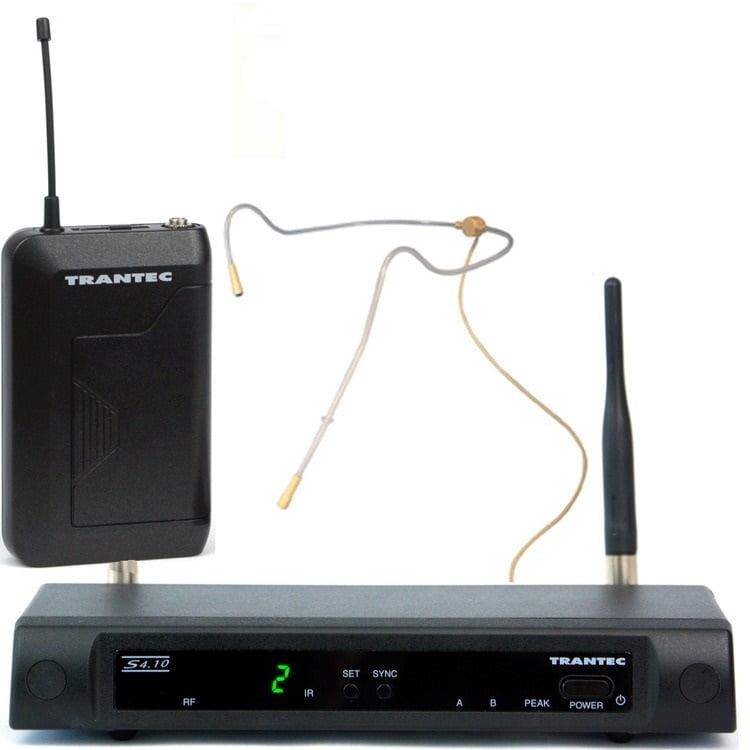

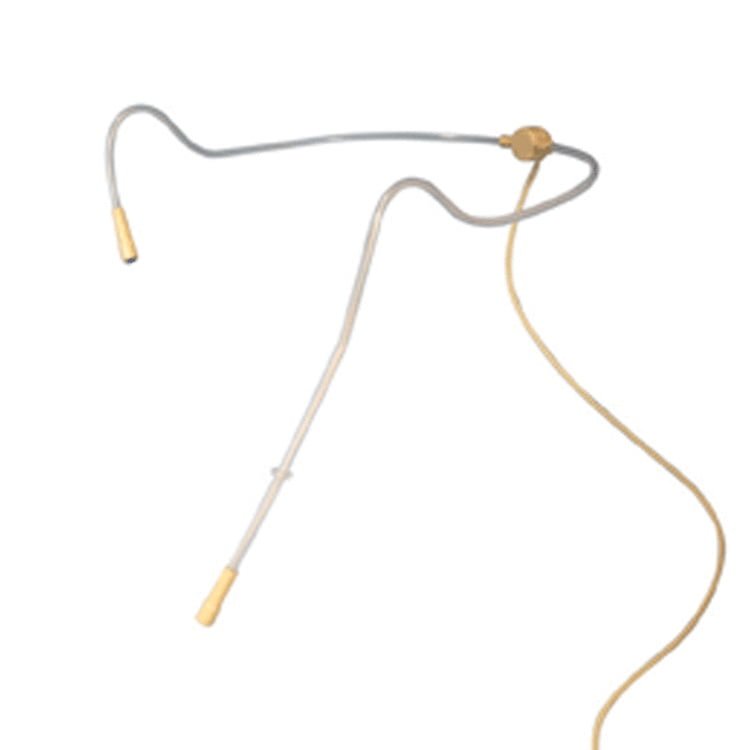

The S4.10 Theatre Headset Radio microphone system comes with a beltpack and SJ22 headworn microphone and a mains powered UHF wireless receiver.

Available on channel 38 (606-614MHz) or channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers
Trantec
Category: SKU: RM/HD/TRA04-1

Trantec S4.10 – UHF Theatre Headmic Radio Microphone System has 16 selectable frequencies with up to 10 simultaneous use channels.

The S4.10 now features auto channel frequency syncing of the transmitter to the receiver.

The S4.10 Theatre Headset Radio microphone system comes with a beltpack and SJ22 headworn microphone and a mains powered UHF wireless receiver.

Available on channel 38 (606-614MHz) or channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers

Trantec product code: channel 38 S4.10-T-EB-GG3 / channel 70 S4.10-T-EB-GD4

Please note that in the UK the frequencies in Channel 70 are licence free, to use the frequencies in Channel 38 you need to apply for a licence. For further information please visit the OFCOM website.

Specifications Trantec S4.10 Receiver
Diversity Reception: Antenna Diversity
Sensitivity: 10uV at 45dBA, S/N
Squelch: Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response: 50Hz – 15kHz
Audio Output Level: Balanced (XLR socket): -20dBu / Unbalanced (1/4″ jack socket): 10dBu
Power Supply: 12 VDC 500mA – UK power supply
Dimensions: 215(W) x 39(H) x 102(D)mm excluding antenna and BNC
Weight: 480g
Trantec S4.10 Beltpack Transmitter
RF Carrier Power: 10mW
Audio Frequency Response: 50Hz – 15kHz
Audio Input Level: -6 dBV (maximum), mic gain 0dB
Battery: 1 x AA alkaline, 1.5V
Battery Life: Approx. 10 hours
Finish: Resin, coating
Dimensions: 62(W) x 100(H) x 25(D)mm (With clip)
Weight: 85g with battery
