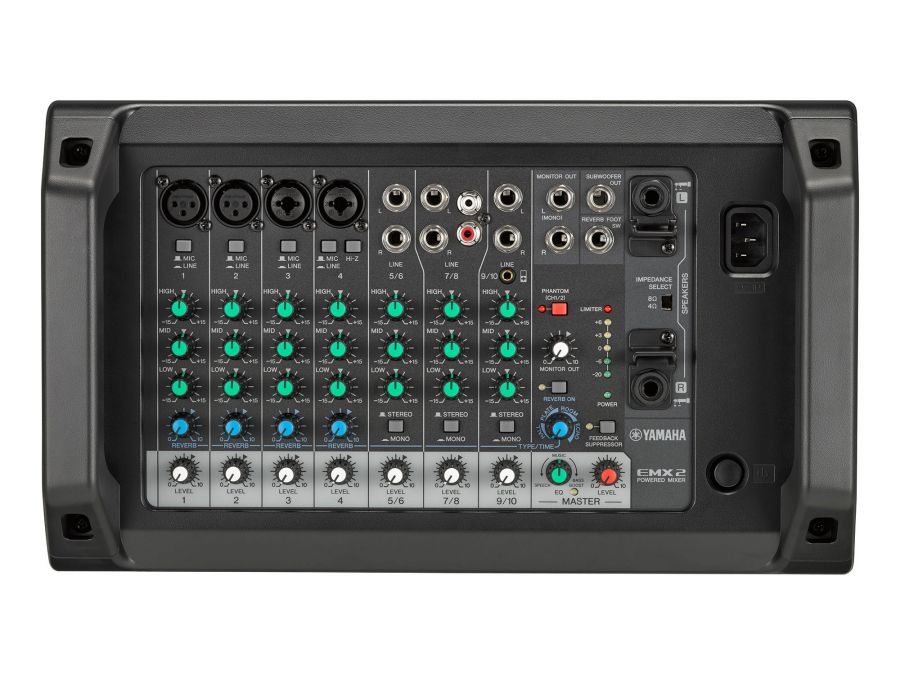

Because the EMX2 is both a mixer and a power amplifier, you only need speakers and mics to have a fully functioning sound system. This makes it easy for newcomers, and even first-time users with no previous audio experience to easily configure their own sound reinforcement system. The EMX2’s all-in-one design concept ensures that by just plugging in a single power cable and making a few simple, intuitive connections, anyone can be their own sound engineer.
- 2x 250W [4Ω], 2x 170W [8Ω] (1kHz THD N less than 10%)
- 2x 110W [4Ω], 2x 110W [8Ω] (1kHz THD N less than 1%)
- 10 Line Inputs (4 mono 3 stereo)
- High-Z input (channel 4) to connect guitars or basses directly
- SPEAKERS(L, R) : 1, MONITOR OUT(L, R) : 1, SUBWOOFER OUT : 1
- Onboard Feedback Suppressor
- SPX Digital Reverb (4 Programs:HALL, PLATE, ROOM, ECHO)
- Dimenssion: 375(W) x 147(H) x 220(D) mm
- Weight: 4.2 kg
Small Chapel, or House of Worship
– The EMX2’s lightweight and portable design make it very easy to carry and particularly useful for impromptu services.
– Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
– The onboard feedback suppressor can automatically cancel out uncomfortable howling giving first time users the confidence they need to manage their audio.
– EMX2’s optional rack-mount kit lets you seamlessly add the EMX2 to a rack configuration or an existing installed application.
Community Center/ Small Hall/ Office Space
– The EMX2’s lightweight and portable design make it very easy to carry and particularly useful for sudden, emergency meetings, planned presentations, or seminars.
– The onboard feedback suppressor can automatically cancel out the uncomfortable howling that convention rooms or small halls are often prone too, giving first-time users the added confidence of worry-free setup.
– The 1-Knob Master EQ™ features a SPEECH setting for EQ optimized for speaking engagements with a simple turn of the knob.
– Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
For DJ’s at Parties or Small Outdoor Events
– The EMX2’s lightweight and portable design make it very easy to carry and particularly useful for parties or DJ events when a fast and easy setup is desired.Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
– The onboard feedback suppressor can automatically cancel out uncomfortable howling, for a worry-free performance.
– The EMX2’s 1-Knob Master EQ™ can help bring out the best in your bass with the optimized Bass Boost setting.
– For more bass-heavy performances, the EMX2 comes equipped with a dedicated port for fast and easy connection to a Yamaha DXS Series powered subwoofer.
Band Performance With Vocal ,Keyboard, Guitar, and Bass
– The EMX2’s lightweight and portable design make it very easy to carry and particularly useful for shows where a speedy set up time is a factor.
– Phantom power lets users connect high-quality condenser mics to add a more professional edge to their performances.
– High-impedance input capability allows users to connect guitars or basses directly into the EMX2.
– Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
– The onboard feedback suppressor can automatically cancel out uncomfortable howling, for a worry-free performance.
– Choose from the EMX2’s four reverb algorithms and add more atmosphere to your sound with the turn of a single knob.
– 1-Knob Master EQ™ lets you shape the sound of your final mix with selectable 3-band EQ settings, including MUSIC which is optimized for band performances.
Karaoke
– The EMX2’s lightweight and portable design make it ideal for fast and convenient setup at a party or karaoke event.
– Phantom power lets users connect high-quality condenser mics to add a more professional edge to their performances.
– The onboard 1-knob reverb features 4 different reverb effects, including an ECHO/ delay—ideal for Karaoke enthusiasts.
– The onboard feedback suppressor can automatically cancel out uncomfortable howling, for fun,worry-free Karaoke.
– The EMX2 can be mounted easily on a microphone stand using a simple mic-stand adaptor.
Specifications
Outline | EMX2 | |
---|---|---|
I/O | Inputs | TOTAL 10ch : Mono (MIC/LINE):4, Stereo(LINE):3 |
Phantom power | CH1, 2 : 30 V | |
Outputs | SPEAKERS [L, R], MONITOR OUT [L,R], SUBWOOFER OUT | |
Control and others | FOOT SW : Effect Mute on/off | |
Bus | Stereo: 1, Effect: 1 | |
Input Channel Function | PAD | 26 dB (CH1-4) |
Hi-Z | Supported (CH4) | |
EQ HIGH | 8kHz 15dB / -15dB | |
EQ MID | 2.5kHz 15dB / -15dB | |
EQ LOW | 100Hz 15dB / -15dB | |
On-board processors | DSP | SPX Algorithm Reverb 4 programs, MASTER EQ (SPEECH to MUSIC), Feedback suppressor |
On-board amplifiers | Maximum output power @4ohms | 1kHz THD N less than 10% (CEA2006) : 250 W 250 W, 1kHz THD N less than 1% : 110 W 110 W |
Maximum output power @8ohms | 1kHz THD N less than 10% (CEA2006) : 170 W 170 W, 1kHz THD N less than 1% : 110 W 110 W | |
Level Meter | 6points (-20, -6, 0 , 3, 6, LIMITER) | |
General specifications | EMX2 | |
Frequency response | Input to SPEAKERS : 1 dB/-4 dB (40Hz to 20kHz), Input to MONITOR OUT : 0.5 dB/-1.5 dB (20Hz to 20kHz) , refer to the nominal output level @ 1 kHz | |
Total harmonic distortion | Input to SPEAKERS : 0.2 % @ 13.8 W (40Hz to 20kHz), 0.4 % @ 23.2W (1kHz), Input to MONITOR OUT : 0.05 % @ 10 dBu (20Hz to 20kHz) 0.009 % @ 20 dBu (1kHz), (THD N, Measured with 22 kHz LPF) | |
Hum & noise level | Equivalent input noise | -115 dBu |
Residual output noise | Input to SPEAKERS : -68 dBu (40Hz to 20kHz, MASTER: min), Input to MONITOR OUT : -99 dBu (20Hz to 20kHz, MONITOR: min) | |
Crosstalk | -80 dB (1 kHz, Measured with 1 kHz band pass filter) | |
Protection circuit | Load protection | DC-fault |
Amplifier protection | Over heat protection, Over current protection | |
Power requirements | AC 100-240V, 50Hz/60Hz | |
Power consumption | 35W (Idle) / 90W (1/8 Power) | |
Dimensions | W | 375 mm (14.8″) |
H | 147 mm (5.8″) | |
D | 220 mm (8.7″) | |
Net weight | 4.2 kg (9.3 lbs.) | |
Accessories | Owner’s Manual, Technical Specifications, Power Cord (2m) | |
Options | Foot Switch: FC5, Mic Stand Adaptor: BMS-10A, Rack mount kit RK-EMX2 | |
Others | Operating Temperature : 0 to 40℃ |
Analog Input Characteristics
Input Jack | MIC/LINE | Hi-Z [CH4] | Actual Load Impedance | For Use with Nominal |
Sensitivity *1 | Nominal | Max. Before Clip |
Connector | |
---|---|---|---|---|---|---|---|---|---|
CH INPUT 1−4 | MIC | – | 3kΩ | 150Ω Mics | -56dBu | -35dBu | -10dBu | CH1, 2 XLR-3-31 *2 (Balanced) CH3, 4 Combo jack *3 (Balanced) |
|
LINE | -30dBu | -9dbu | 16dBu | ||||||
CH INPUT 3−4 | MIC | OFF | 3kΩ | 150Ω Mics | -50dBu | -29dbu | -4dBu | ||
ON | 1MΩ | 10 kΩ Lines | |||||||
LINE | OFF | 3kΩ | 150Ω Lines | -24dBu | -3dBu | 22dBu | |||
ON | 1MΩ | 10kΩ | |||||||
CH INPUT 5/6- 9/10 | – | – | 10kΩ | 150Ω Lines | -24dBu | -3dBu | 22dBu | CH5/6 Phone jack *4 (Unbalanced) CH7/8 Phone jack *4 & RCA pin (Unbalanced) CH9/10 Phone jack *4 & Stereo mini jack (Unbalanced) |
Output Characteristics
Output Terminal | Actual Source Impedance |
For Use with Nominal | Nominal | Max. Before Clip | 1kHZ THD N < 1% | 1kHz THD N < 10% |
Connector |
---|---|---|---|---|---|---|---|
SPEAKERS OUT [L,R] | <0.1Ω | 4Ω | – | – | 110W | 250W | Phone Jack** |
8Ω | 110W | 170W | |||||
MONITOR OUT [L,R] | 150Ω | 10kΩ Lines | 4dBu | 20dBu | – | – | Phone Jack* |
SUBWOOFER OUT | 150Ω | 10kΩ Lines | -3dBu | 17dBuv | – | – | Phone Jack* |
