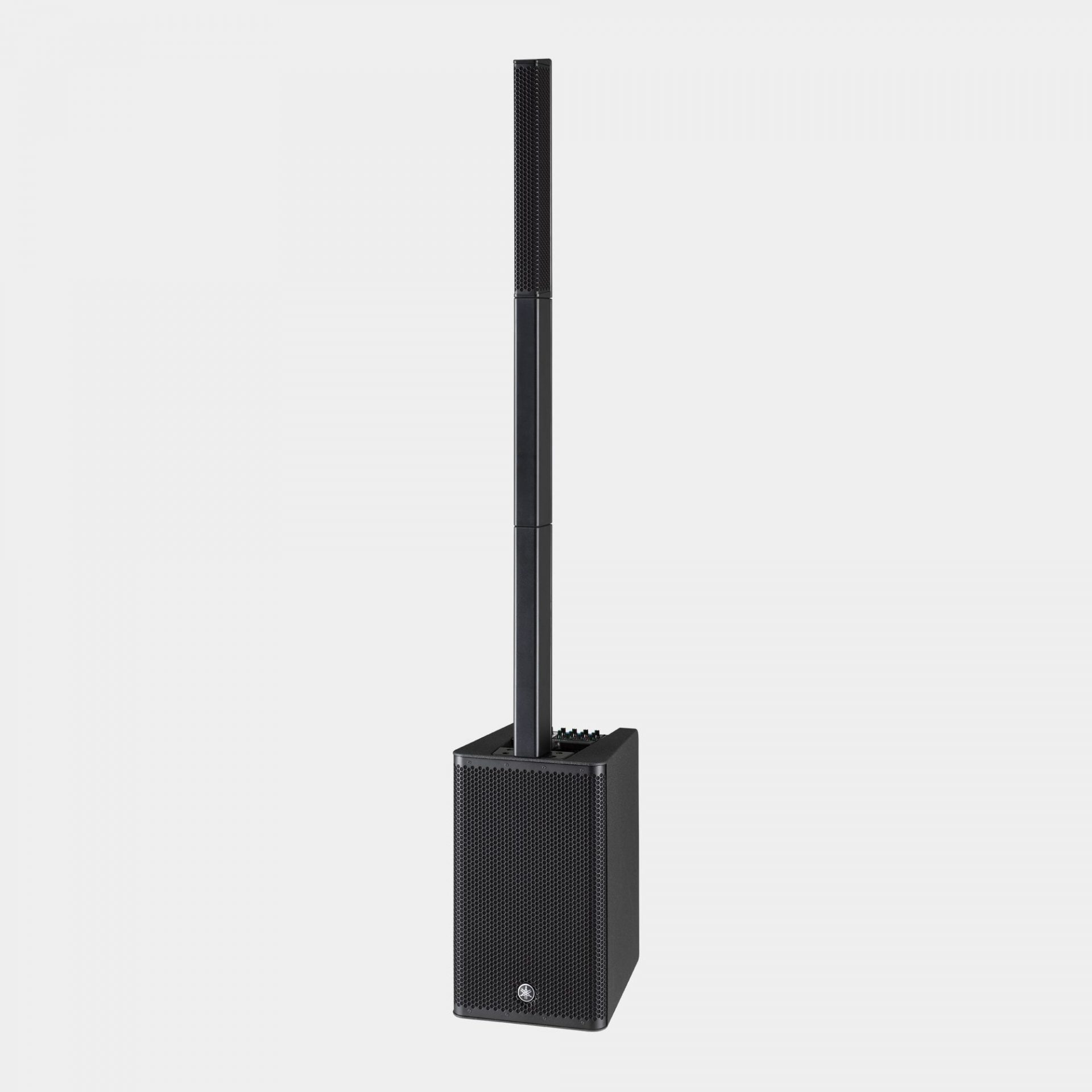

Yamaha STAGEPAS 1K

The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

Simple setup and simple control allow you to focus on your performance

The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow and letting you focus on your performance.

Compact yet powerful package

Despite its lightweight and compact cabinet construction, the STAGEPAS 1K mkII features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. An impressive 170° horizontal and 30° vertical coverage delivers clear, high-quality sound consistently throughout a wide listening area.

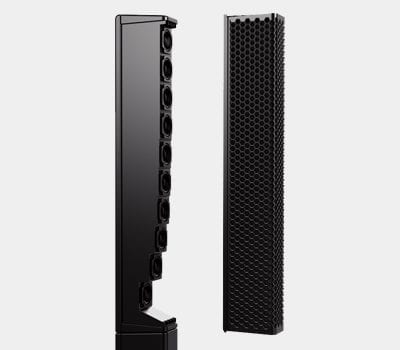

J-curve slim line array

The high-frequency speaker array is comprised of 10 x 1.5-inch small-diameter speakers. By adopting a J-curve array configuration, the high-frequency unit achieves coverage of 170° horizontal and 30° vertical. With such a long, 10-driver array design the STAEGEPAS 1K mkII can deliver clear, high-quality sound consistently over longer distances from the front to the rear of the audience

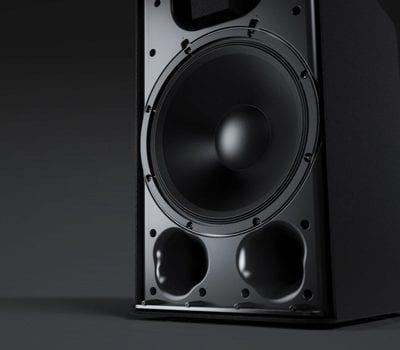

Class-leading 12-inch “compact” subwoofer

The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the STAGEPAS 1K mkII boasts the smallest cabinet on the market for a subwoofer of this size and power.

By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.

1100W Amplifier

Also at the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional audio products, and innovator of related technologies to ensure that with great power comes great stability and that the STAGEPAS 1K mkII maintains the same accurate, superior-quality sound even at high output.

Professional functionality with simple operation

Yamaha has been developing innovative digital mixers for professional engineers around the world for decades. the STAGEPAS 1K’s digital mixer incorporates that wealth of expertise, featuring an intuitive UI that makes it possible to dial in otherwise complex operations with a single knob, reducing setup time and streamlining system operation and allowing users to focus on their performance.

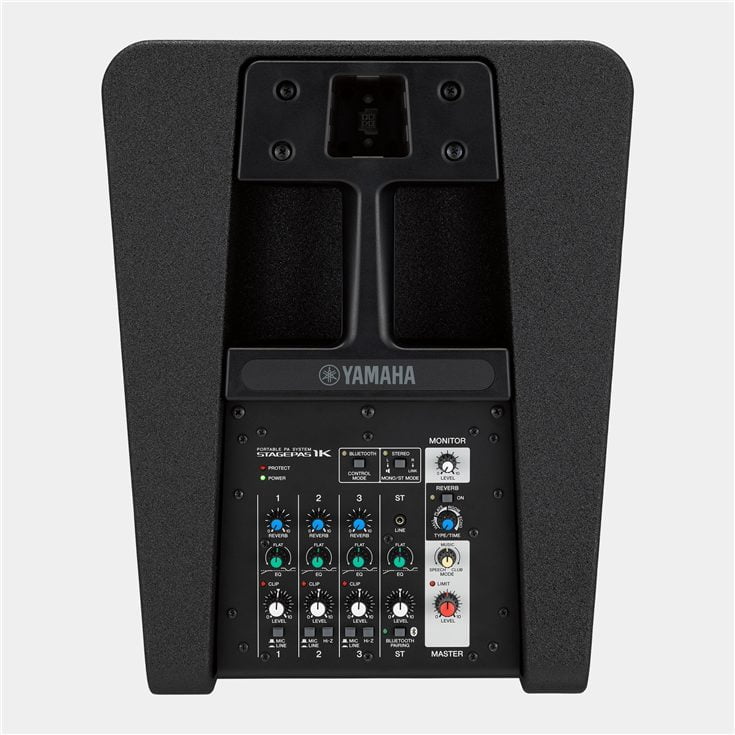

Digital mixer with versatile input

With outstanding flexibility for a PA system of this size, the 5-channel digital mixer features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to Phone and 1/8″mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide range of input sources from instruments to CDs, PCs and smartphones.

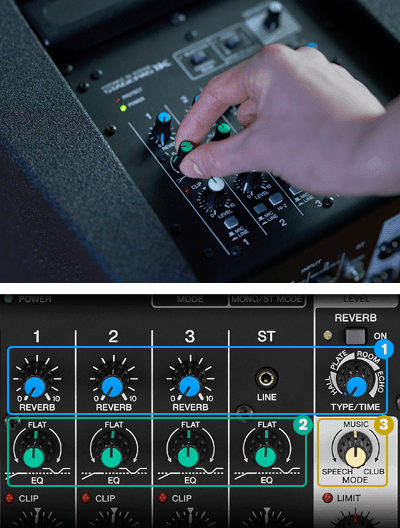

Professional control with a single knob

STAGEPAS 1K mkII comes equipped with a wealth of sound shaping functions, including 1-knob EQ for optimized multi-band EQ setting, industry standard SPX reverb, and the “Mode” control for master output compression settings that match various applications such as “Speech” or “Music.” Each of these functions can be set via a single knob and has simplified many of the tough tasks like EQ and compression to get you great sound fast. In addition, the optional FC5 foot switch can also be used for on/off operation.

1. SPX the standard digital reverb
   One knob gives you access to four different high-quality reverb settings—perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.
2. 1-knob EQ
   Whether turning to the left to cut unnecessary low-end frequencies for speeches or turning to the right to emphasize the bottom and high end for band performances, this innovative equalizer can dial in the perfect sound adjustment with a simple turn of the knob.
3. “MODE” for master output
   The multiband compressor adjusts optimized compression settings to suit various applications. By selecting the setting closest to your application, you can add a more professional edge to your sound without having to learn difficult compression/audio engineering principles.

Superior Utility and Portability

The STAGEPAS 1K is an innovative all-in-one portable PA system that is not only capable of filling a wide area with high-quality and uniform sound from just one unit, but also lightweight enough to be easily carried by anyone, simple enough to set up in about one minute, and durable enough to withstand harsh environments.

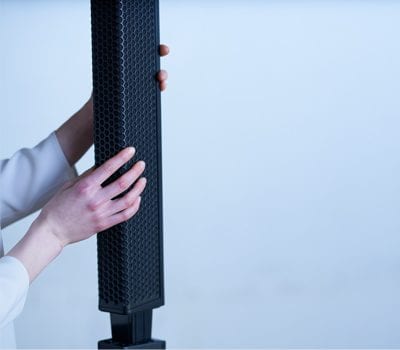

Simple setup

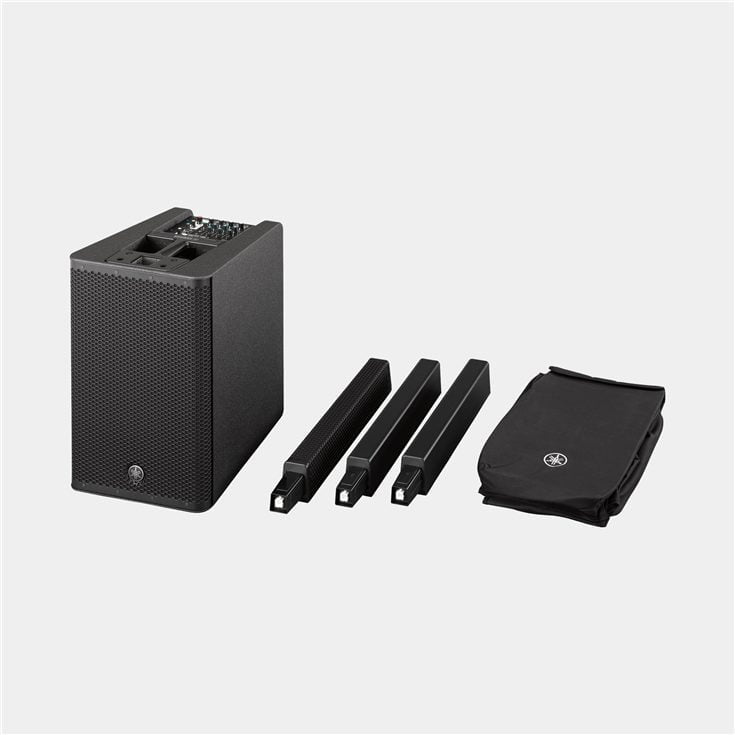

Simply place the 2 spacers and speaker unit into the subwoofer and setup is essentially done, with no cables, speaker stand, or additional gear required beyond the main unit. All you need is in the package.

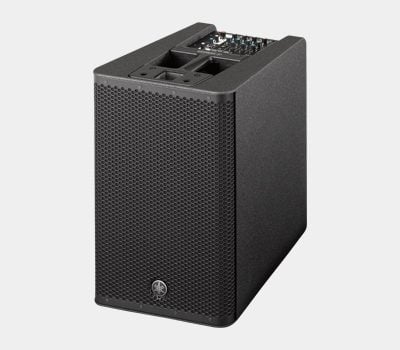

High-grade polyurea coating

The lightweight ABS cabinet of subwoofer features a high-grade polyurea coating to prevent wear and tear during transport. It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand harsh performance environments.

Expandable STAGEPAS systems

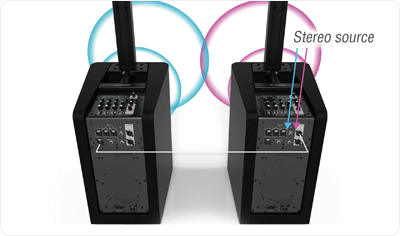

Linking two STAGEPAS 1K mkII or a STAGEPAS 1K mkII with a DXL1K provides greater coverage area and increased output power for large-scale performances. Both stereo and mono playbacks are supported, and when set to mono, the inputs of the two linked units(*) can still be used.

* 2x STAGEPAS 1K mkII: up to six mono inputs plus two stereo inputs

* A STAGEPAS 1K mkII and a DXL1K: up to five mono inputs plus one stereo input

Fitted cover included

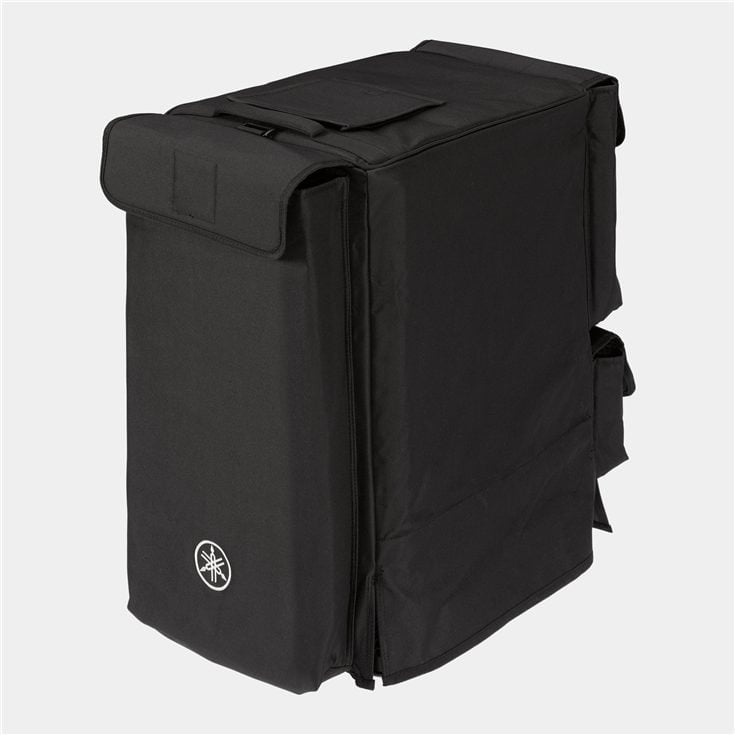

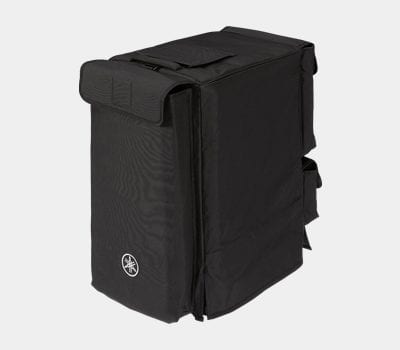

The STAGEPAS 1K comes with its own cover which, in addition to protecting the unit, has pouches for both spacers and speaker array as well as additional storage pockets for microphones, cables, etc., streamlining system setup and teardown.

STAGEPAS Controller

With an all-new interface, STAGEPAS Controller is a dedicated remote control application for the STAGEPAS 1K mkII that allows users to adjust volume and 1-knob EQ or 4-band PEQ via Bluetooth during rehearsal or performance. You can also save the adjusted settings for certain songs or applications in order to shorten your setup process in the future and maintain consistency from one performance to the next, and even control the volume of multiple STAGEPAS 1K mkII units from within the application.
