- Portable PA system
- 400W (200W 200W) power output
- Newly designed high quality speakers
- Detachable 8-channel mixer (4 Mic)
- iPod/ iPhone USB connection
- One-knob master EQ™ with virtual bass boost
- High resolution SPX digital reverbs
- Onboard feedback suppressor
- Great-sounding 2-band channel EQ
- Switchable stereo/ mono inputs
- Phantom power
- Monitor and Subwoofer outputs
- 400W (200W 200W) power output
- Newly designed high quality speakers (LF:8″ woofer/ HF:1″ voice coil compression driver)
- Detachable 8-channel mixer (4 mono mic/line 4 mono / 2 stereo line)
- iPod/ iPhone USB connection
- One-knob master EQ™ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 2-band channel EQ
- Switchable stereo/ mono inputs
- Hi-Z (high impedance) inputs
- Phantom power
- Monitor and Subwoofer outputs
- Optional reverb footswitch

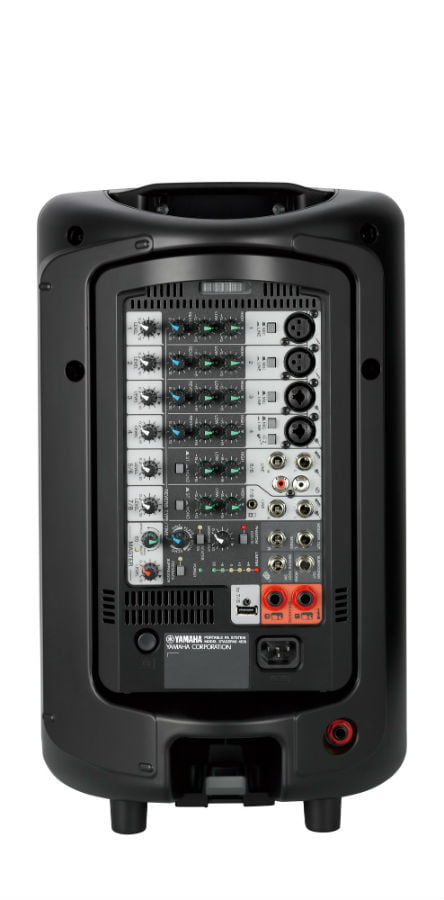

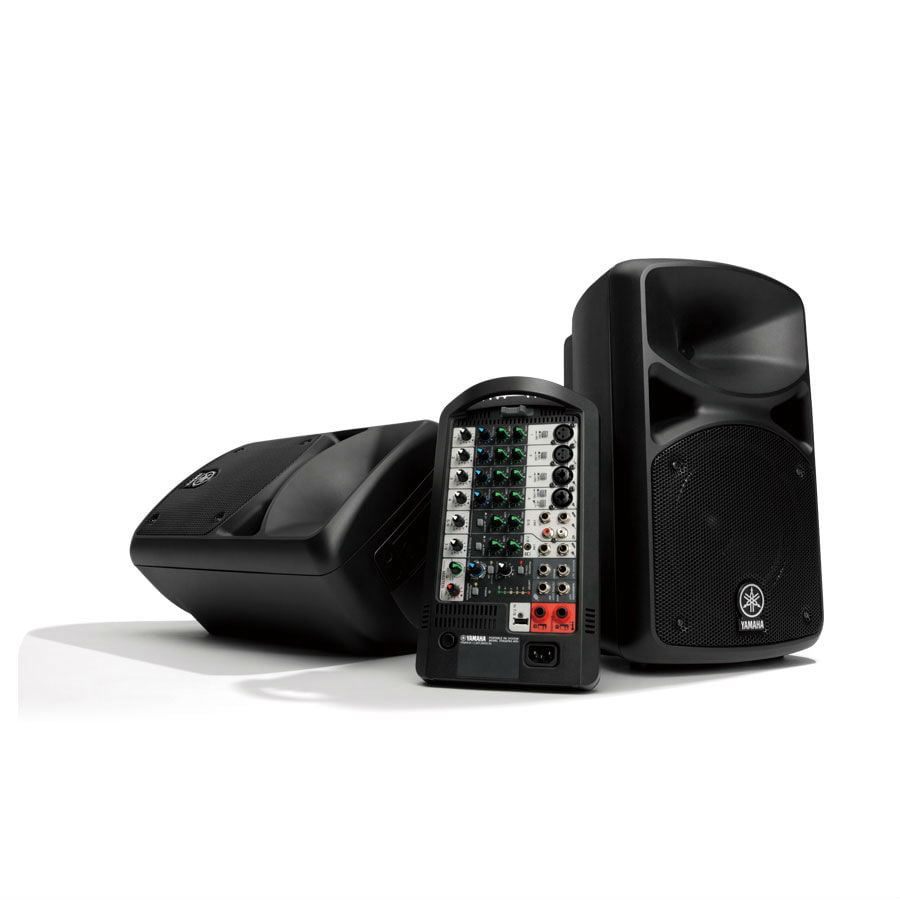

The new STAGEPAS features two sleek, lightweight speakers and a detachable powered mixer, along with one pair of speaker cables and a power cord, giving you a complete, extremely portable sound solution that can be set up quickly and easily in a variety of configurations and environments. By combining new high-efficiency amplifiers, newly designed speakers, and high performance DSP, the new STAGEPAS delivers a significant increase in power output (400W for the 400i and 680W for the 600i) as well as substantial improvements in sound quality and reliability. Complementing the boost in performance, the addition of iPod/ iPhone connectivity, SPX digital reverbs, an onboard feedback suppressor and more versatile EQ, has improved functionality and ease of use considerably, allowing STAGEPAS to meet the demands of a much wider range of applications and users.
The Ultimate All-in-One Portable PA System

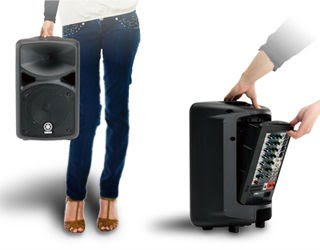

The new STAGEPAS 400i and 600i are complete, all-in-one sound solutions that are extremely portable and easy to set up, allowing users to instantly add high quality sound reinforcement to virtually any environment.
New Mixer Features for a Streamlined Set-up
The new STAGEPAS was designed to offer high quality sound, simply and quickly to let you do what you do best. Whether you’re giving a speech or playing a gig, STAGEPAS is equipped with intelligent new features that provide simple, intuitive control of optimized settings, making it easy to dial in your perfect sound in a matter of seconds.
A Flexible Mixer with Improved Functionality
Equipped with 10 channels or 8 channels respectively, the STAGEPAS 600i and 400i offer versatile connectivity, comprehensive channel functions, and seamless expandability that meet the growing demands of a wider range of applications and environments.
Higher Power Output, Higher Sound Quality, Higher Reliability
By combining new high-efficiency amplifiers, newly designed speakers and high performance DSP, the new STAGEPAS delivers a significant increase in power output, with substantial improvements in sound quality and reliability.
| Model | STAGEPAS 400i | ||||||
|---|---|---|---|---|---|---|---|
| System Type | Powered mixer with 2 passive speakers | ||||||
| Maximum SPL (*Maximum SPL) | 125dB SPL / speaker | ||||||
| Frequency Range (-10 dB) | 55Hz – 20kHz | ||||||
| Power Consumption | 30W (Idle), 70W (1/8 Power) | ||||||
| Power Requirements | 100V – 240V 50Hz/60Hz | ||||||
| Dimentions (W x H x D) | Speaker 289x472x275mm, Mixer 308x180x116mm | ||||||
| Net Weight | 17.8kg / 39.2lbs (2 x Speaker 7.5kg Mixer 2.8kg) | ||||||

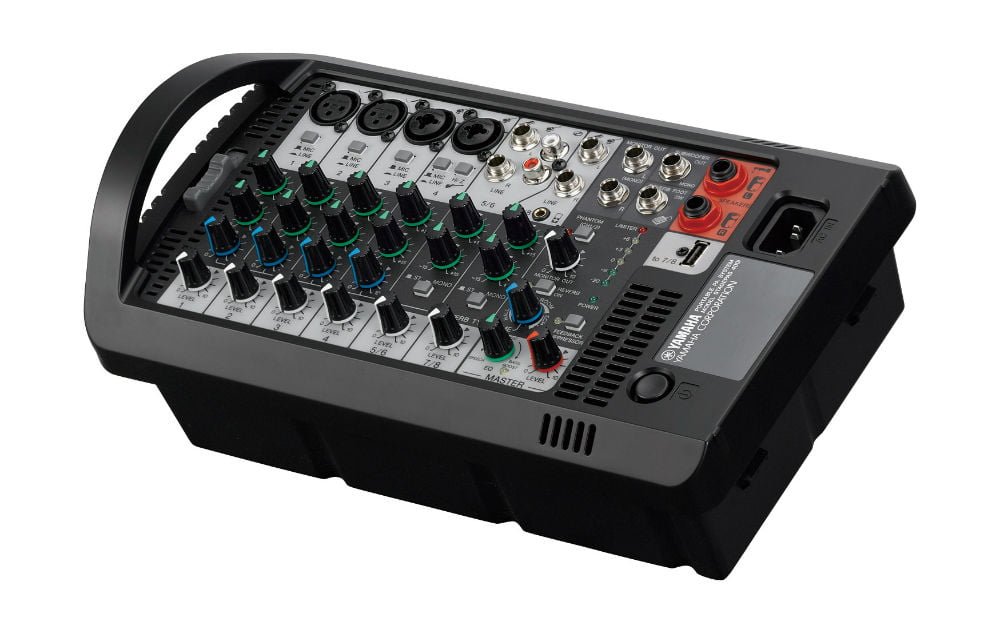

Powered Mixer
| Model | STAGEPAS 400i | ||||||
|---|---|---|---|---|---|---|---|
| Mixer | Mixing channels | 8 | |||||
| Analog inputs | 4 mono mic/line 4 mono / 2 stereo line | ||||||
| Digital inputs | USB Audio IN: iPod/iPhone exclusive | ||||||
| Channel EQ | 2-band (HIGH Shelving: 8kHz, LOW Shelving: 100Hz) | ||||||
| Channel functions | Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8 | ||||||
| Digital effects | SPX digital reverb (4 program, parameter control) | ||||||
| Output processing | Feedback suppressor, 1-Knob Master EQ™ | ||||||
| Phantom power | 30V (CH1, 2) | ||||||
| Outputs | SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF | ||||||
| Control and others | Reverb foot switch | ||||||
| Built-in Amplifiers | Power Rating (Dynamic) | 400W (200W 200W) | |||||
| Power Rating (Continuous) | 360W (180W 180W) | ||||||
Speaker
| Model | STAGEPAS 400i | ||||||
|---|---|---|---|---|---|---|---|
| Type | Two-way bass-relfex speakers | ||||||
| Transducers | LF: 8” (20cm) cone, HF: 1” (2.54cm) voice coil compression driver | ||||||
| Coverage Angle (Horizontal x Vertical) | 90° x 60° | ||||||
| Floor Monitor Angle | 50° | ||||||
| Handle | 1 x Top | ||||||
| Pole socket | 34.8-35.2mm pole socket with StageLok™ | ||||||
Accessories
| Model | STAGEPAS 400i | ||||||
|---|---|---|---|---|---|---|---|

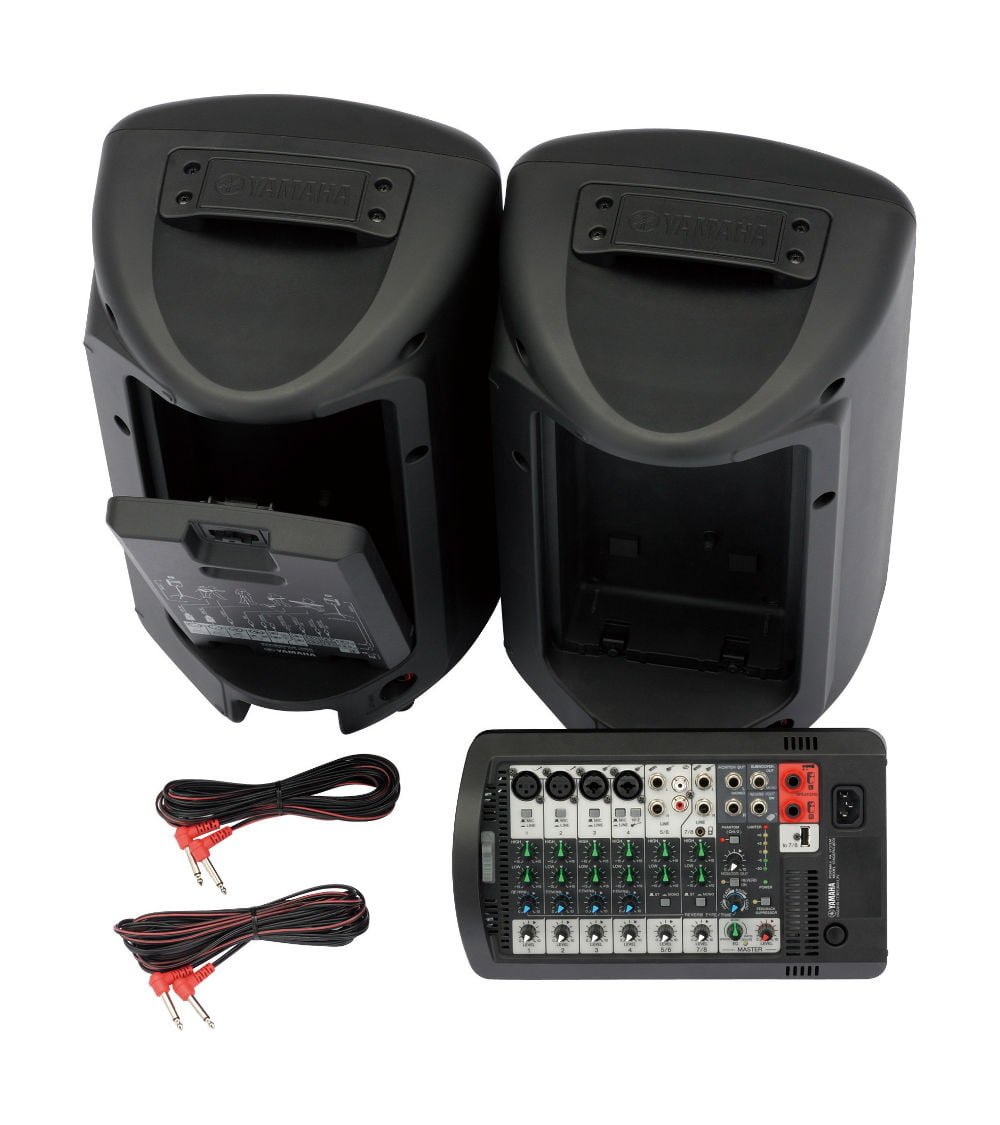

| Included Accessories | Cover panel, Power cord (2m), 2xSpeaker cables (6m), 12xNon-skid pads | ||||||

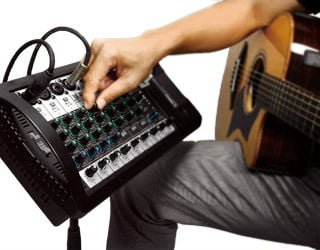

| Optional Accessories | Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF | ||||||
Input Characteristics
STAGEPAS400i
| Input Terminals | MIC/LINE | Input Impedance |
Source Impedance |
Input Level | Connector Type |
|||
|---|---|---|---|---|---|---|---|---|
| Sensitivity | Nominal | Max. before Clipping |
||||||
| CH IN 1-2 | XLR | MIC | 3 kΩ | 150 Ω Mics | -56 dBu | -35 dBu | -10 dBu | XLR-3-31 |
| LINE | -30 dBu | -9 dBu | 16 dBu | |||||
| CH IN 3-4 | XLR | MIC | 3 kΩ | 150 Ω Mics | -56 dBu | -35 dBu | -10 dBu | XLR Combo |
| LINE | -30 dBu | -9 dBu | 16 dBu | |||||
| Phone | MIC | 10 kΩ (Hi-Z 1 MΩ) |
150 Ω Lines (Hi-Z 10 kΩ) |
-50 dBu | -29 dBu | -4 dBu | ||
| LINE | -24 dBu | -3 dBu | 22 dBu | |||||
| CH IN 5/6 | Phone | – | 10 kΩ | 150 Ω Lines | -24 dBu | -3 dBu | 22 dBu | Phone* |
| Pin | – | 10 kΩ | 150 Ω Lines | -24 dBu | -3 dBu | 22 dBu | RCA Pin | |
| CH IN 7/8 | Phone | – | 10 kΩ | 150 Ω Lines | -24 dBu | -3 dBu | 22 dBu | Phone* |
| Mini | – | 10 kΩ | 150 Ω Lines | -24 dBu | -3 dBu | 22 dBu | Stereo Mini | |
Output Characteristics
STAGEPAS400i
| Output Terminals | Output Impedance |
Load Impedance |
Output Level | Connector Type |
|||
|---|---|---|---|---|---|---|---|
| Nominal | Max. before Clipping |
Typ at THD N 10% |
Dynamic | ||||
| SPEAKERS OUT [L,R] | <0.1 Ω | 4Ω Speakers | – | – | 180 W | 200 W | Phone* |
| MONITOR OUT [L,R] | 600 Ω | 10 kΩ Lines | 4 dBu | 20 dBu | – | – | Phone* |
| SUBWOOFER OUT | 150 Ω | 10 kΩ Lines | -3 dBu | 17 dBu | – | – | Phone* |
Brand
Yamaha
