Full-range compact surface mount speaker with a 1.5″ driver
- Newly developed 1.5-inch full-range driver unit
- Wide 170° horizontal and vertical dispersion
- Compact 62mm x 62mm form blends unobtrusively with any décor
- Dedicated wall/ceiling mount hardware supplied

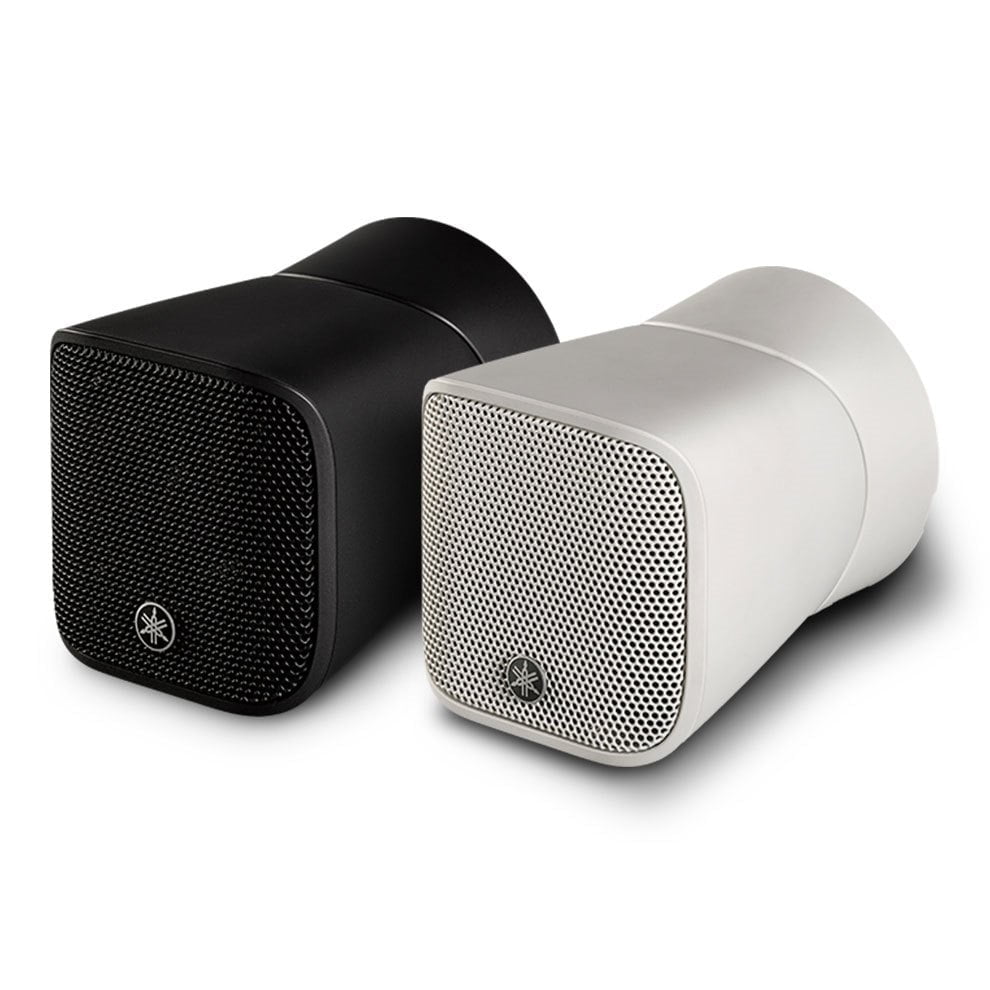

- Black and white models available
Blurs the lines between audio and interior design
An elegant environment depends on more than just décor and lighting. Sound plays a vital role as well. VXS series “M” models combine sophisticated sound and design in compact surface-mount speakers that will make a significant contribution to the most refined, elegant spaces.
While the sound of some compact speaker systems is a compromise, the innovative VXS series “M” models are designed in every detail, from driver to enclosure, to deliver the finest possible sound quality in the smallest possible space. Graceful curves define a tasteful form that will blend beautifully in any interior.
The key to extraordinary sonic performance is a small 1.5-inch full-range driver unit. Technology and expertise accumulated over 50 years of speaker development and production has been liberally applied in a speaker that delivers exceptional clarity and astonishing musical realism.
First you’ll be surprised by this speaker’s looks, and then by its extraordinary sound.
- Newly developed 1.5-inch full-range driver unit
- Wide 170° horizontal and vertical dispersion
- Compact 62mm x 62mm form blends unobtrusively with any décor
- Dedicated wall/ceiling mount hardware supplied
- Black and white models available
- Packaging single
- Paintable enclosures and grilles
Optimized for Background Music
Background music reproduction requires uniform dispersion, uniform frequency response, and optimum sound pressure level for the space. The VXS Series M model has been designed specifically for BGM applications, and satisfies all of the above conditions to the highest degree. Broad 170° horizontal and vertical dispersion delivers uniformly accurate frequency response throughout the coverage area, providing sound so natural that the listener might be fooled into believing it is a live musical performance.
High-performance Full-range Driver
The VXS1ML features a newly developed compact 1.5-inch full-range driver with a powerful neodymium magnet. This innovative driver has been painstakingly designed to achieve remarkably detailed, realistic reproduction of musical waveforms. The entire system has been fine-tuned to deliver top-quality sound in a surprisingly compact, lightweight unit.
A Sublime Blend of Function and Elegance
In addition to being packed into the smallest possible dimensions to minimize visual impact, the VXS1ML boasts smoothly flowing lines that allow it to blend unobtrusively with just about any interior décor. The VXS1ML brings together the best of both worlds: outstanding sound and sophisticated visual appeal.
Mounting Options for Any Interior
The VXS series M model is prepared many type of brackets, and corresponds to various installation according to the application.

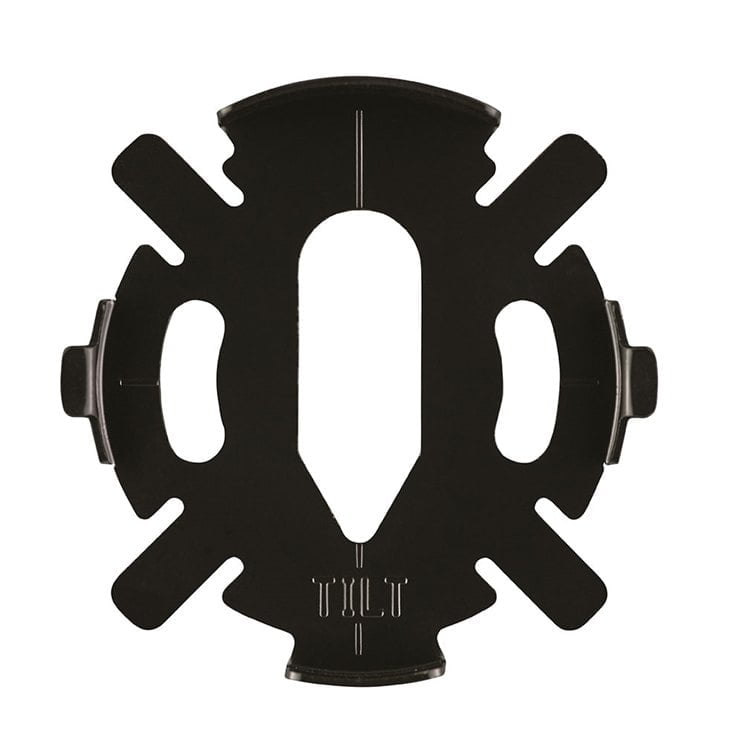

Included bracket
The VXS series M model is supplied with hardware for easy wall and ceiling surface mounting.
You must be logged in to post a review.
VXS1MLB / VXS1MLW | ||
---|---|---|
Speaker type | Full-range, acoustic suspension type | |
Frequency range (-10dB) | 180Hz-20kHz | |
Nominal coverage | H | 170° |
V | 170° | |
Components | LF-HF | 1.5″ Cone |
Power rating | NOISE | 5W |
PGM | 10W | |
PEAK | 20W | |
Nominal impedance | 8Ω | |
SPL | Sensitivity (1W; 1m on axis) | 79dB SPL *1 |
Peak (Calculated) | 92dB SPL *2 | |
I/O connectors | Euroblock (2 pin) × 1 | |
Finish | VXS1MLB: Black (approximate value: Munsell N3), VXS1MLW: White (approximate value: Munsell N9) | |
Dimensions | W | 62mm (2.4″) *3 |
H | 62mm (2.4″) *3 | |
D | 82mm (3.2″) *3 | |
Net weight | 0.17 kg (0.37 lbs) *3 | |
Accessories | Wall/Ceiling Bracket | |
Packaging | Packaged each | |
Certificate | NFPA70, CE, RoHS |
